DESCRIPTION
Introducing our advanced packaging line designed specifically for F-style large bottles. This comprehensive system includes a high-performance filling machine with an 8-head servo gear pump, ensuring precise filling with adjustable height. The servo-driven capping machine seamlessly delivers caps via a lift conveyor for optimal efficiency. Additionally, our single-side labeling machine accurately applies labels to flat bottle surfaces, making it the perfect solution for your packaging needs. Streamline your production process and enhance productivity with our state-of-the-art packaging line.
Servo Gear Pump Filling Machinery
- Machine model: ZS-VTGP8D
- Machine voltage: 220/380V 3KW
- Filling range: 5-10L
- Working capacity: 8-16 BPM(based on filling volume)
- Filling pump: Gear Pump
- Drive mode: Servo System

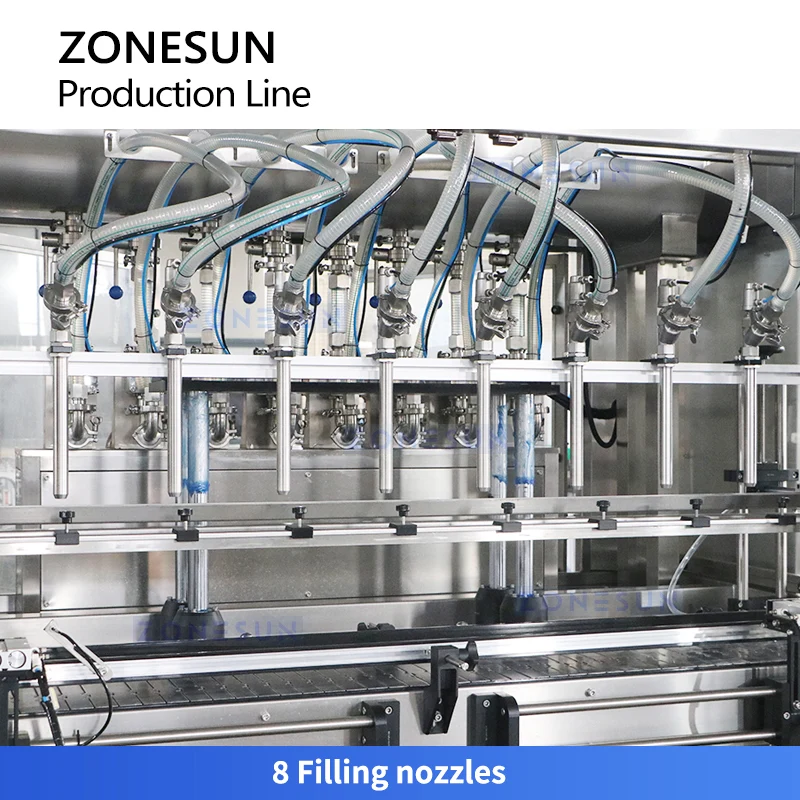

- Filling nozzle quantity: 8
- Air consumption: 4kgs*30L
- Machine size: About 5800*1730*2550 mm

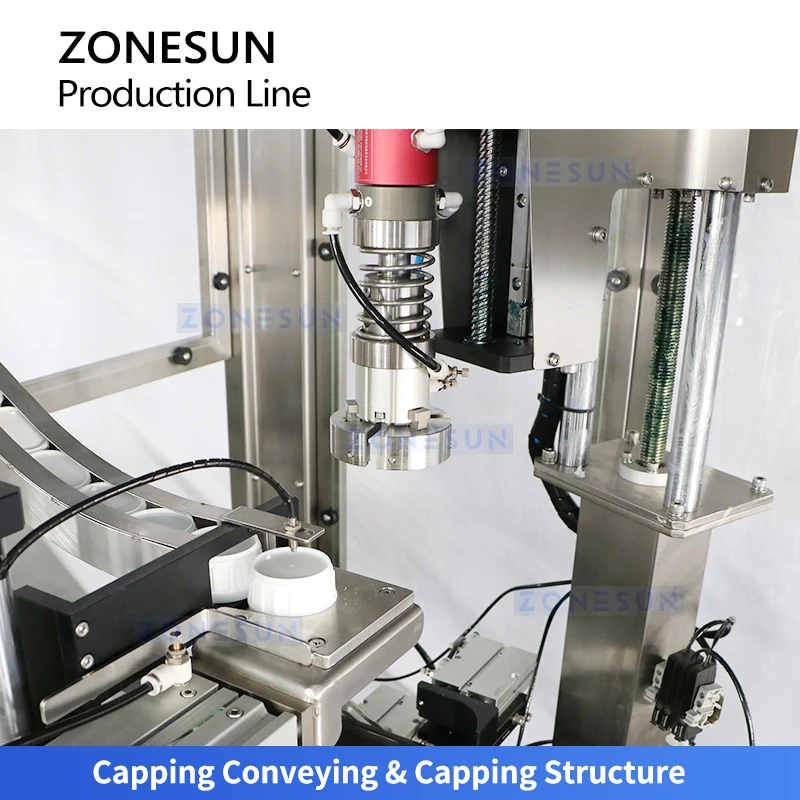

Bottle Capping Machine
- Machine model: ZS-XG441F
- Machine voltage: 110/220V 50-60HZ 2KW
- Suitable cap size: 30-120 mm(Can be customized)
- Suitable bottle height: Customized
- Air pressure: 0.7 MPa
- Working capacity: 5-15 BPM
- Machine size: About 5000*1680*2350 mm
Flat Bottle Single Side Labeling Machine
- Machine model: ZS-TB600R
- Machine voltage: 110/220V 50-60HZ 1500W
- Labeling speed: About 40-100bottles/min(depending on bottle and label size)
- Suitable product Size: About 30-200 mm(H)*12-100 mm(W)
- Label size: 20-300mm(W)*15-100 mm(H)
- Labeling accuracy: ±1 mm
- Label roll inner diamete: φ75 mm
- Label roll outer diameter: φ350 mm
- Machine size: About 3030*1050*1540 mm
