DESCRIPTION

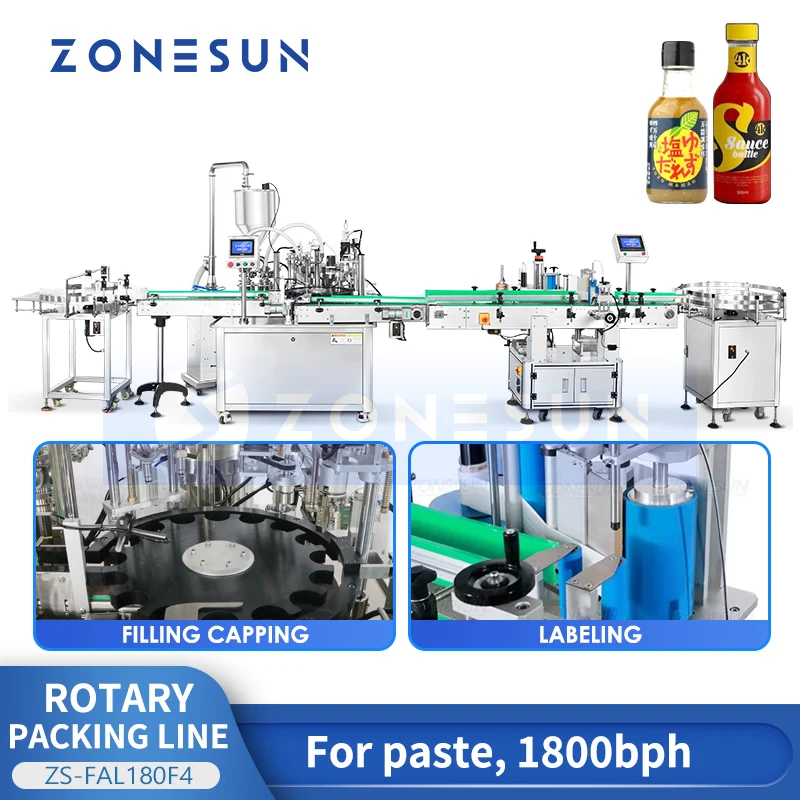

This packaging line is designed for filling and packaging thick liquids, such as syrups and other viscous products. It consists of a bottle unscrambler, a filling and capping machine, a labeling machine, and a bottle collector, with a production capacity of 1800bph. The customized filling and capping machine adopts a cam divider and a mechanical transmission structure, which ensures high speed and stable operation. This production line is suitable for filling and packaging various thick liquids in the food, beverage, and pharmaceutical industries.
Parameter
- Machine model: ZS-AFC34
- Power: About 4.2kW (220V 50Hz)
- Cover size: Customized
- Bottle size: Customized
- Filling capacity: 200-300ml (based on syrup)

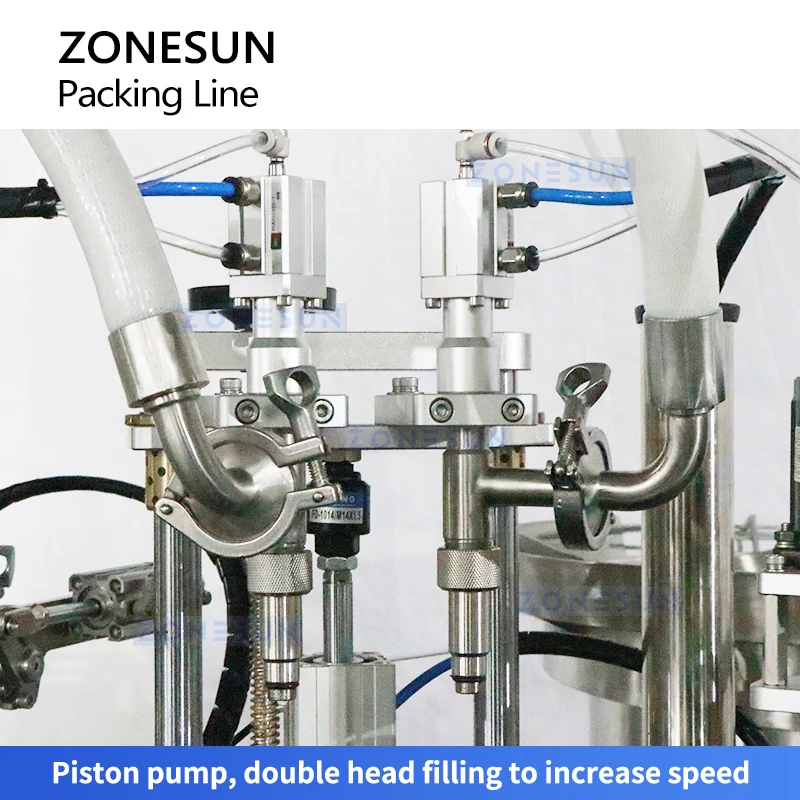

- Filling pump: Double-head servo piston filling
- Filling accuracy: About ±2%
- Production efficiency: 30BPM (based on filling volume and filling material)
- Working air pressure: 0.6-0.8mpa
- Machine size: About 2300 × 1500 × 1700 (mm)
- Machine weight: About 800kg
