DESCRIPTION

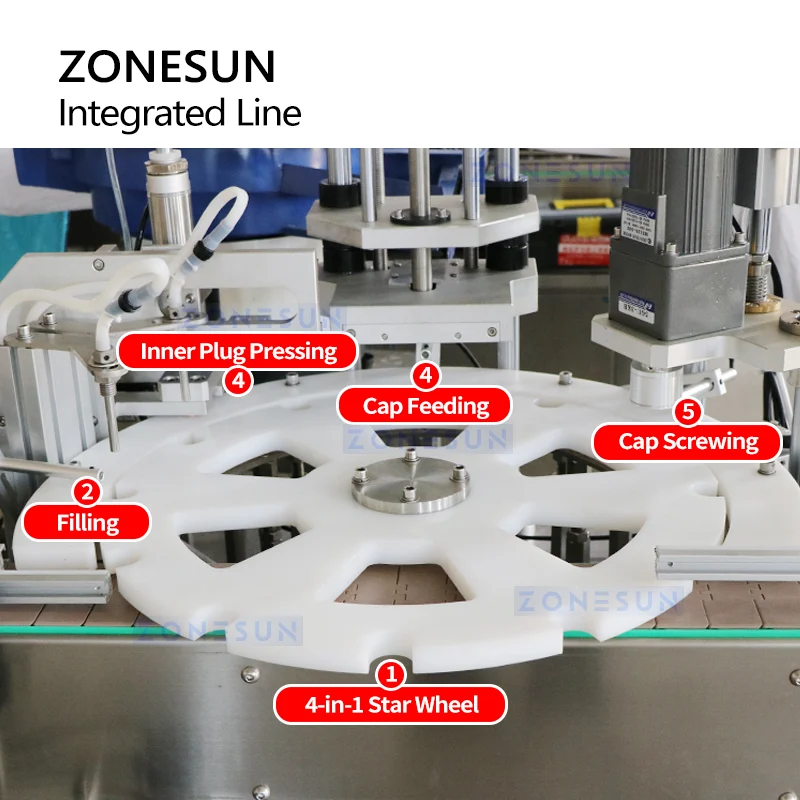

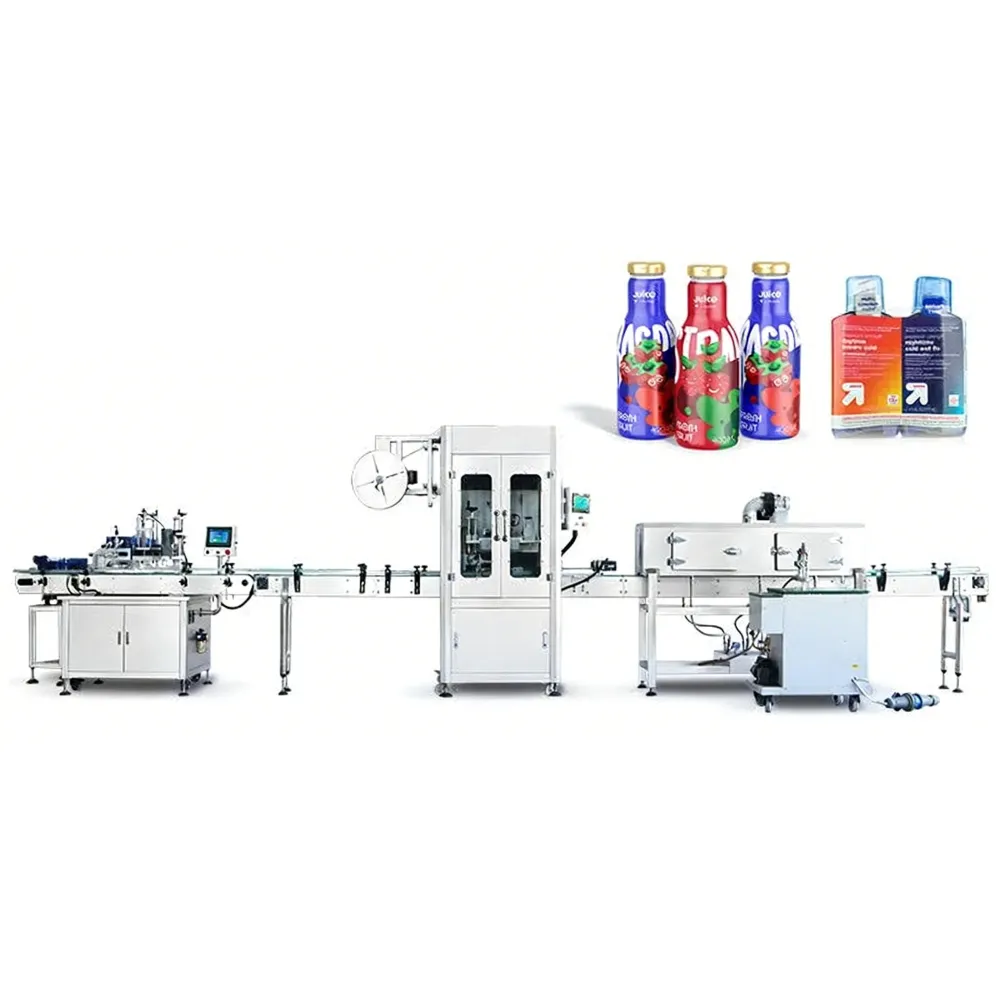

This bottle packaging line is a complete solution for businesses looking to improve their packaging process. The line includes a high-quality filling and capping 4-in-1 machine, a reliable sleeve labeling machine, and a precision shrink tunnel. With this packaging line, you can efficiently package your bottles with ease and accuracy. Whatever your packaging needs are, you can rely on ZONESUN.
Parameter – ZS-TB602
- Machine Model: ZS-TB602
- Voltage: 220V, 50–60Hz
- Labeling Speed: Approx. 30–60 pcs/min (depending on product and label size)
- Label Size: Customizable
- Suitable Product Size: Customizable
- Machine Size: Approx. 2410 × 879 × 1511mm
- Package Size: Approx. 2100 × 900 × 1600mm
- Net Weight / Gross Weight: Approx. 220kg / 352kg
Parameter – ZS-STB150

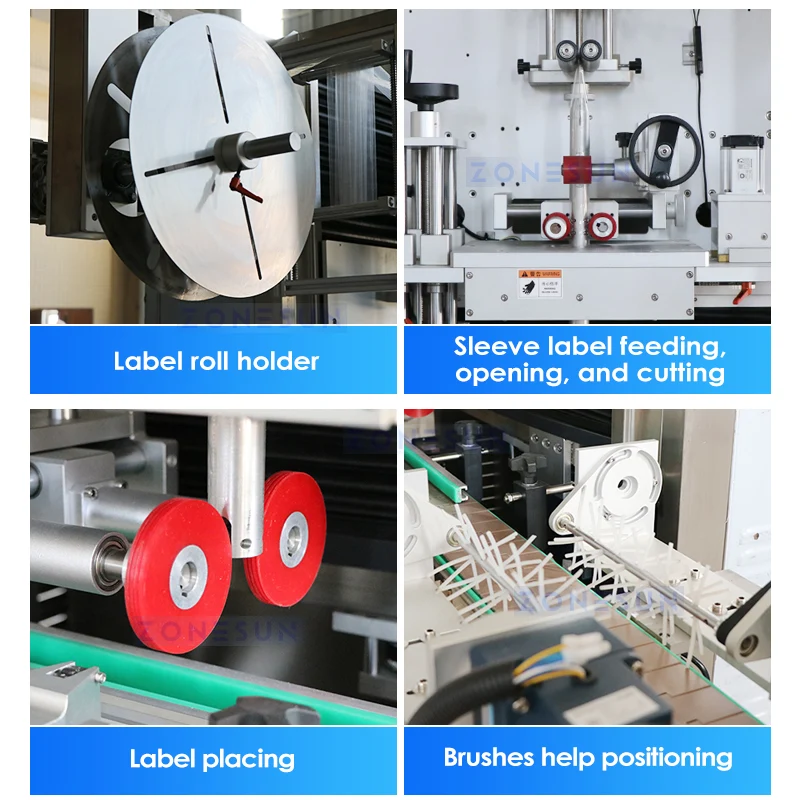

- Sleeve Labeling Machine: ZS-STB150
- Bottle Diameter Range: φ28mm–φ125mm (customizable)
- Bottle Height: 30mm–280mm (customizable)
- Label Length: 30mm–250mm (customizable)
- Label Thickness: 0.03mm–0.13mm (PVC, PET, OPS)
- Sleeve Standard Error: ±1.5mm
- Paper Tube Inner Diameter: 5″–10″ (adjustable)
- Machine Speed: 150 bottles/min (based on label length)
- Voltage: 220V, Single Phase
- Power: 1.5kW
- Conveyor Belt: Standard 2M
- Machine Size: Approx. 2950 × 1030 × 1870mm
- Machine Weight: Approx. 464kg
- Package Size: Approx. 2250 × 1250 × 2140mm
- Package Weight: Approx. 493kg

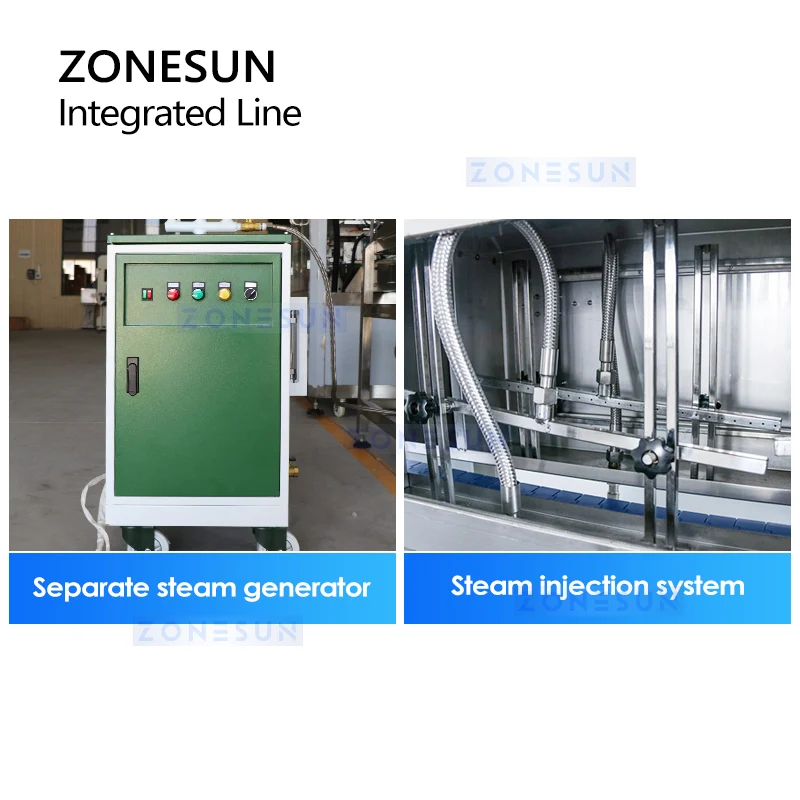

Parameter – Tunnel
- Tunnel Length: Approx. 1800mm
- Tunnel Width: Approx. 395mm
- Tunnel Height: Approx. 360mm
- Suitable Bottle Diameter: ≤80mm
- Conveyor Height: Approx. 900mm
- Machine Size: Approx. 3050 × 480 × 1330mm
- Machine Weight: Approx. 86kg
- Package Size: Approx. 1905 × 610 × 1720mm
- Package Weight: Approx. 143kg
