Description

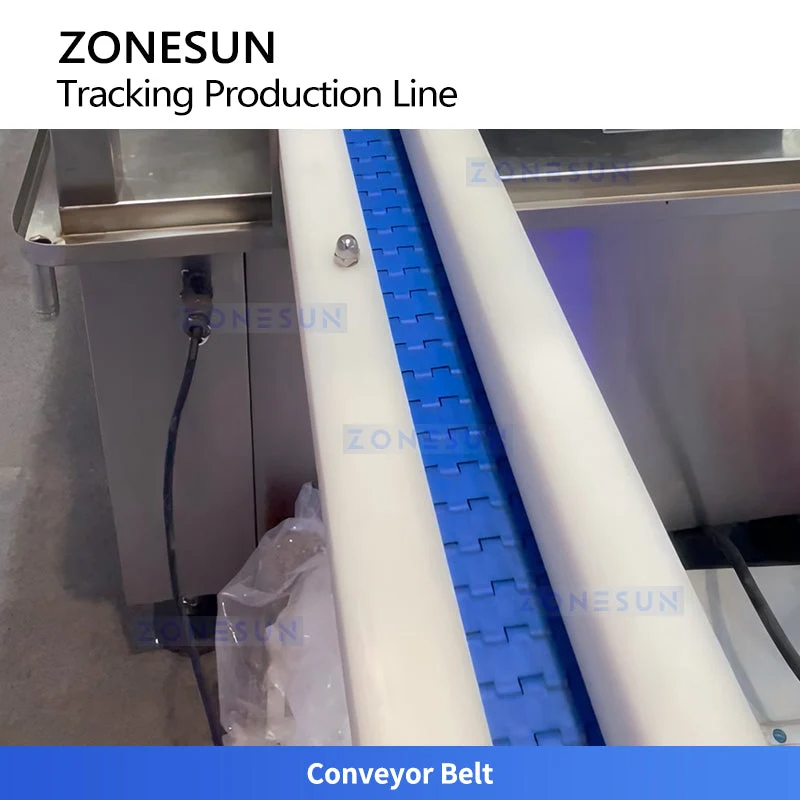

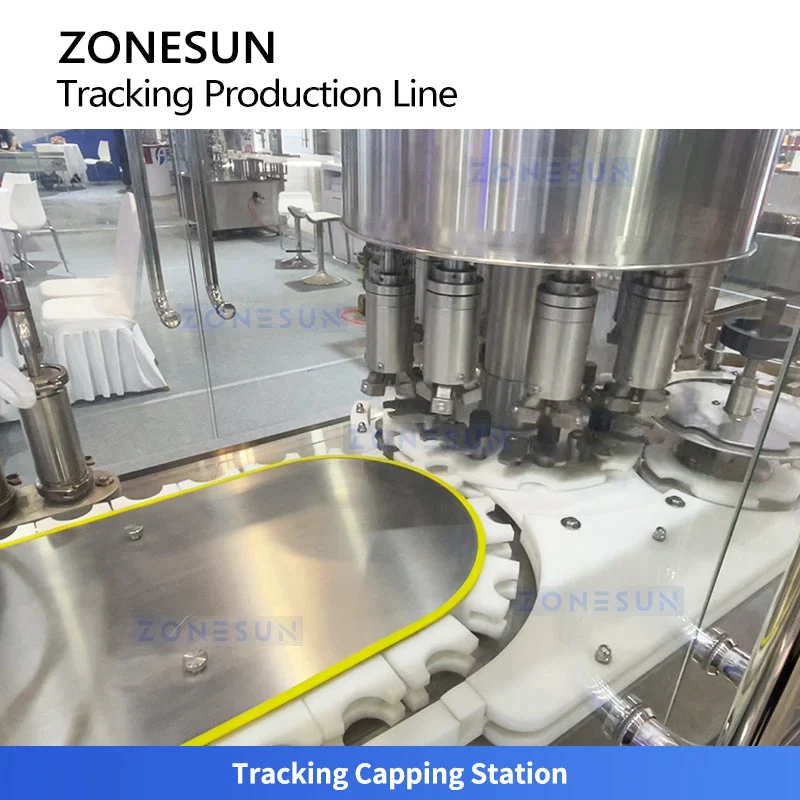

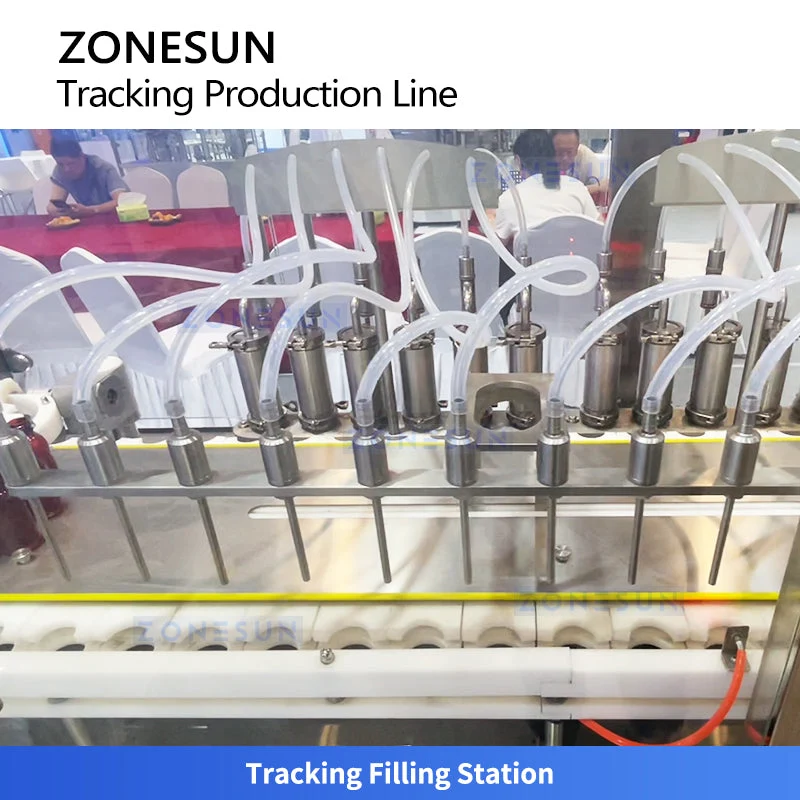

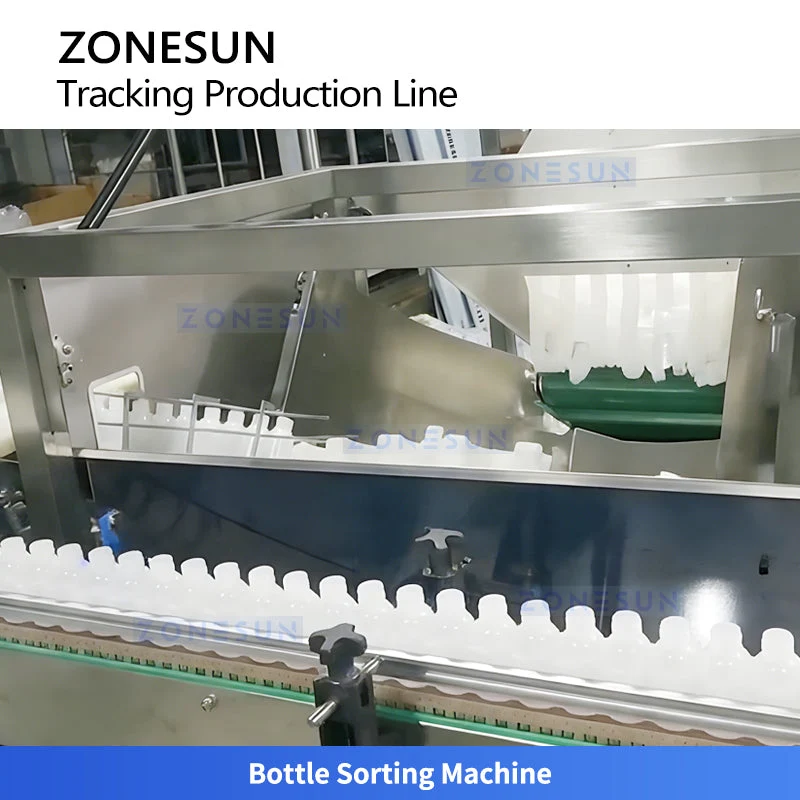

The ZONESUN ZS-VTXG50 is a servo-driven tracking filling and capping machine designed for continuous, high-speed liquid production lines. With a capacity of up to 7,800 bottles per hour, it synchronizes filling and capping heads with moving bottles, eliminating the need to stop the conveyor. This ensures smooth, accurate, and spill-free operation. Suitable for 50–500 ml glass or plastic bottles, the system integrates tracking filling, cap placing, capping, and conveying into a compact, efficient structure. It supports full line customization with bottle sorters and labeling machines for flexible production requirements.
Parameter
- Model: ZS‑VTXG50
- Production Capacity: 3600–7800 bottles/hour
- Applicable Bottle: 50–500 ml glass or plastic bottle
- Filling Accuracy: ±1%
- Power Supply: 380 V, 50 Hz, three‑phase four‑wire
- Power: 2 kW
- Overall Dimensions: 1800 × 900 × 1600 mm
- Weight: 900 kg
