DESCRIPTION
Introducing our state-of-the-art Ultrasonic Tube Filling and Sealing Machine, designed for the cosmetics, adhesives, shoe polish, and food industries. This advanced machine features six workstations powered by a servo motor, enabling intermittent motion of a circular chain. The 14 fixtures on the chain perform equidistant movements, ensuring efficient automatic filling, sealing, coding, edge trimming, and product ejection. With its smooth and reliable operation, this machine is the perfect solution for high-quality packaging needs across various sectors.
PARAMETER
- Model: ZS-TFS6
- Hose material: Composite tube, plastic tube
- Hose diameter: Φ16mm-Φ50mm
- Hose length: 50mm-250mm (customizable)
- Filling capacity: 20ml-300ml/piece (adjustable)
- Filling accuracy: ±1%
- Benchmarking method: Servo benchmarking
- Filling method: Pneumatic piston filling
- Sealing method: Ultrasonic welding
- Production capacity: 20-30 pieces/minute
- Compressed air: 0.5-0.8mpa
- Power: 4.5kw (220V 50Hz)
- Ultrasonic power: 2.6kw
- Dimensions: LWH:120×80×150cm
- Main unit weight: About 220kg

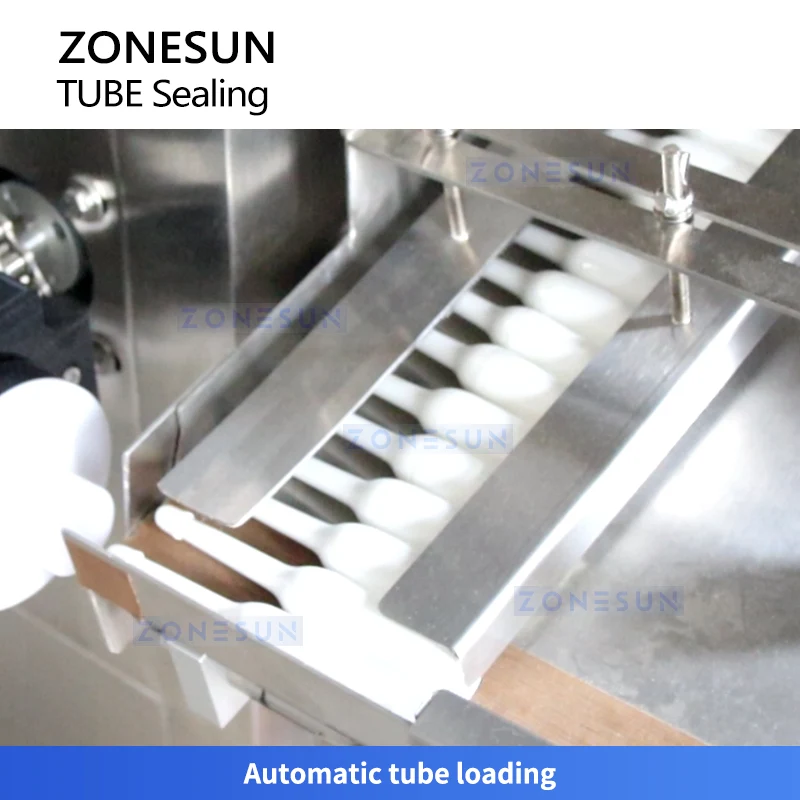

Tube Loading
Automatically load the tube from the tube rack into the station, ensuring a fast and stable process. It simplifies the operateion, reduces manual intervention and improve efficiency.

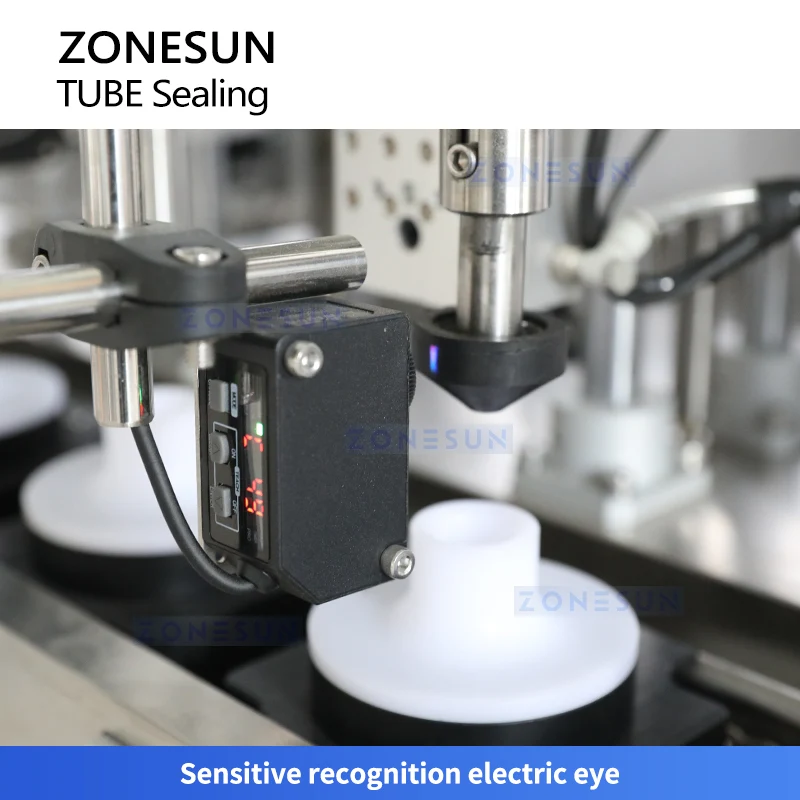

Electric Eye
It can detect the presence of the tube and automatically align it. It adopts a servo-driven alignment mechanism to ensure precise positioning.

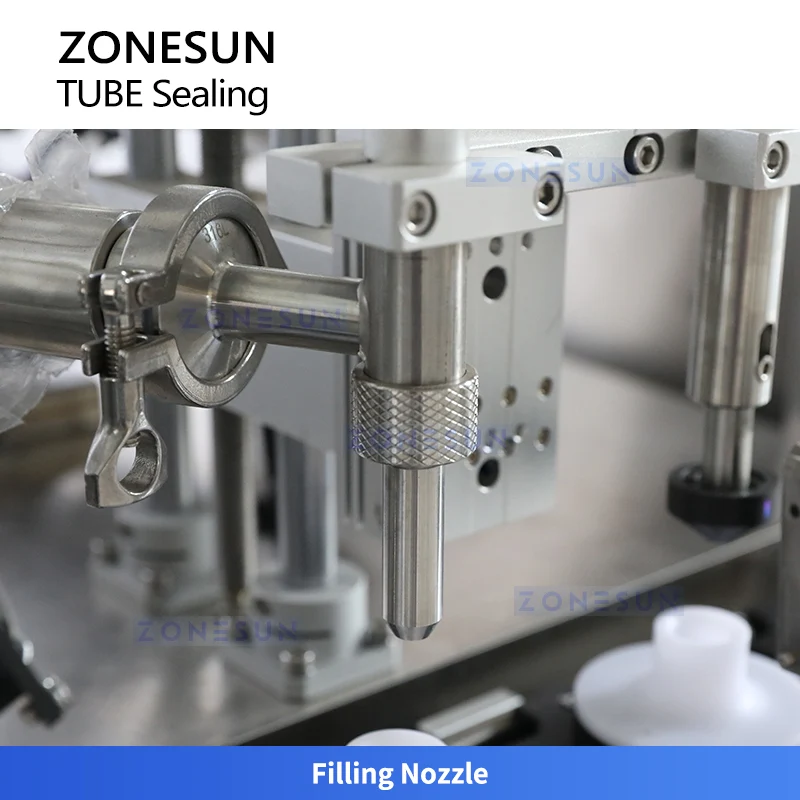

Filling Nozzle
To prevent material dripping, the filling nozzle adopts an insert-type design. The filling action is performed by a cylinder, and a pneumatic piston is used for precise volume filling with an accuracy of ±1%.

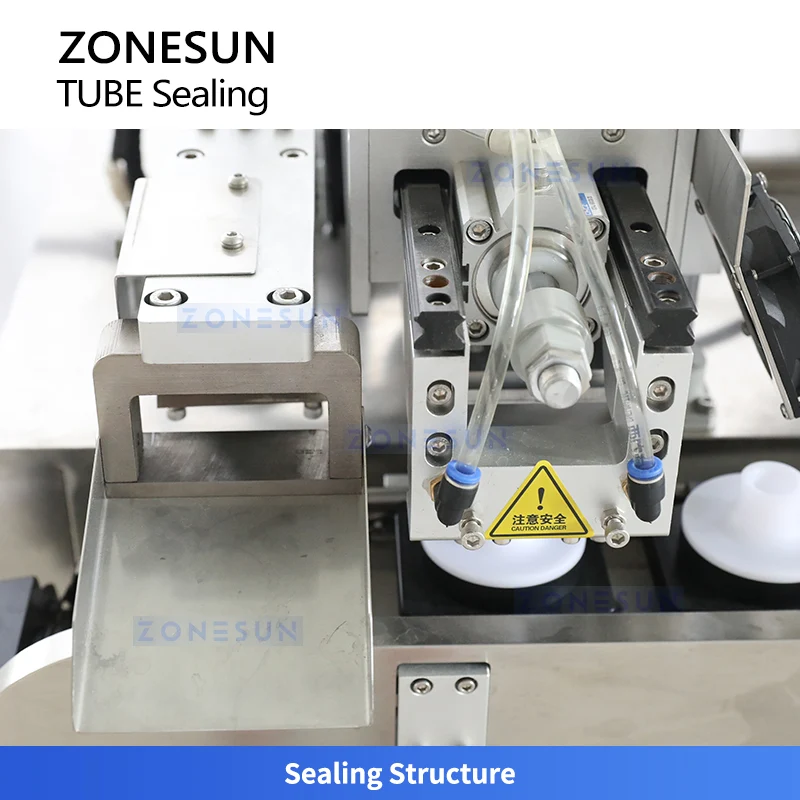

Sealing Structure
Ultrasonic welding technology is used for sealing, and the seal is firm. And the sealing end is beautiful , which enhances the overall product.
