DESCRIPTION

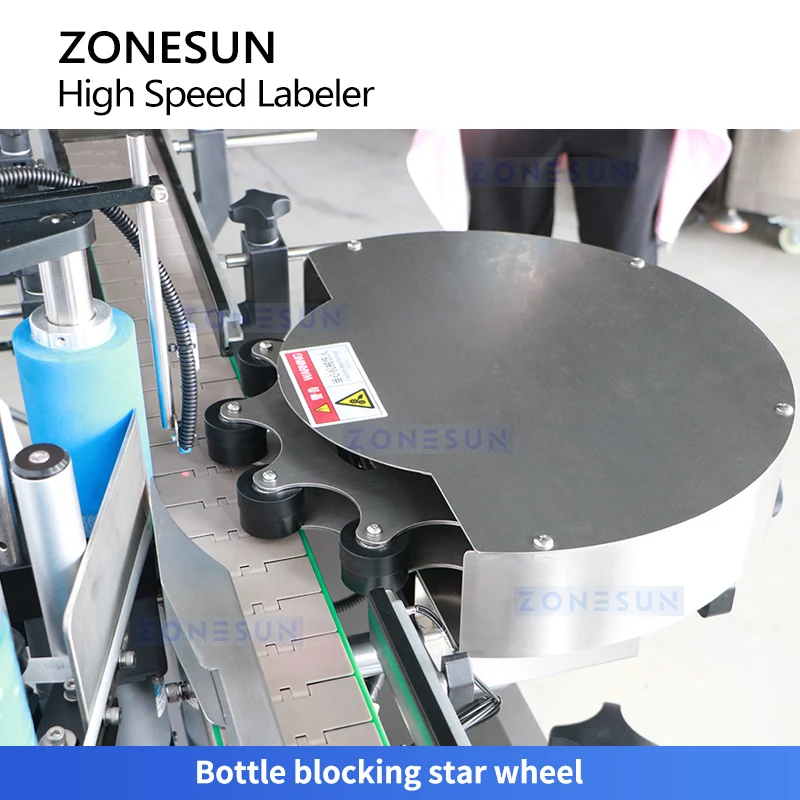

Revolutionize your round bottle labeling process with our innovative automatic labeling machine. Unlike traditional pneumatic systems, our machine features a rotary electric bottle clamping mechanism. This significantly reduces bottle infeed/outfeed time, boosting efficiency and achieving an impressive production capacity of up to 6,000 bottles per hour. Experience faster, more precise labeling for increased throughput and reduced downtime.
Parameter
- Model: ZS-TB700
- Power Supply: AC 220V, 50–60Hz, 2000W
- Labeling Capacity: 60–100 bottles/min (depends on bottle size)
- Labeling Accuracy: ±1.0 mm
- Suitable Bottle Size: Diameter: 30–100 mm; Height: 30–120 mm
- Label Size: Length: 20–300 mm; Height: 15–130 mm (customizable)
- Roll Inner Diameter: Φ76 mm
- Roll Outer Diameter: Φ350 mm
- Conveyor Size: 112 × 2000 mm (Width × Length) (customizable)
- Machine Dimensions: Approx. 2100 × 1230 × 1380 mm (Length × Width × Height)
- Machine Weight: Approx. 200 kg
- Package Dimensions: Approx. 2060 × 1070 × 1550 mm
- Package Weight: Approx. 304 kg
