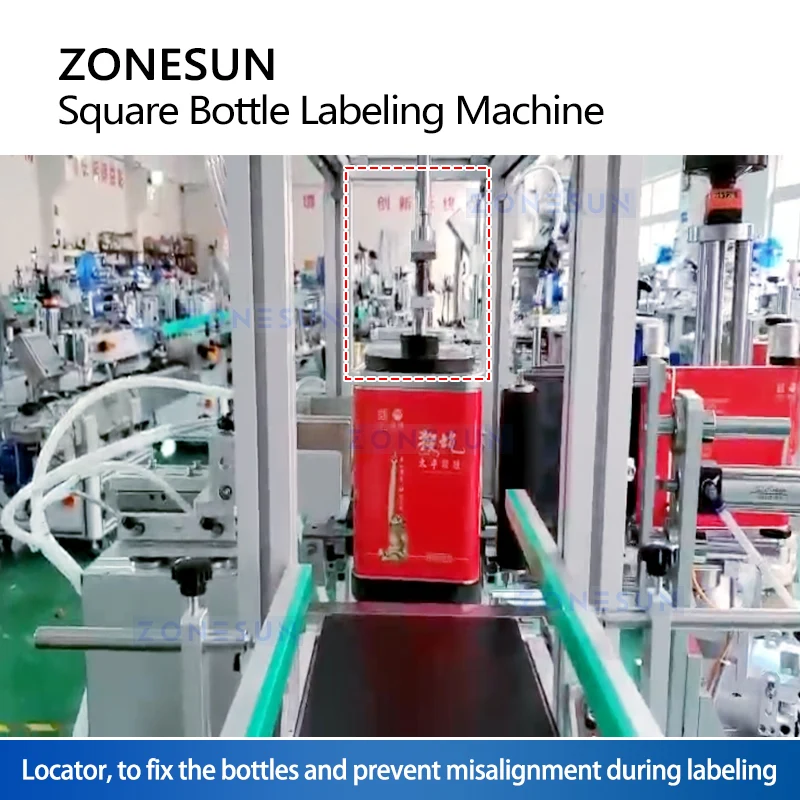

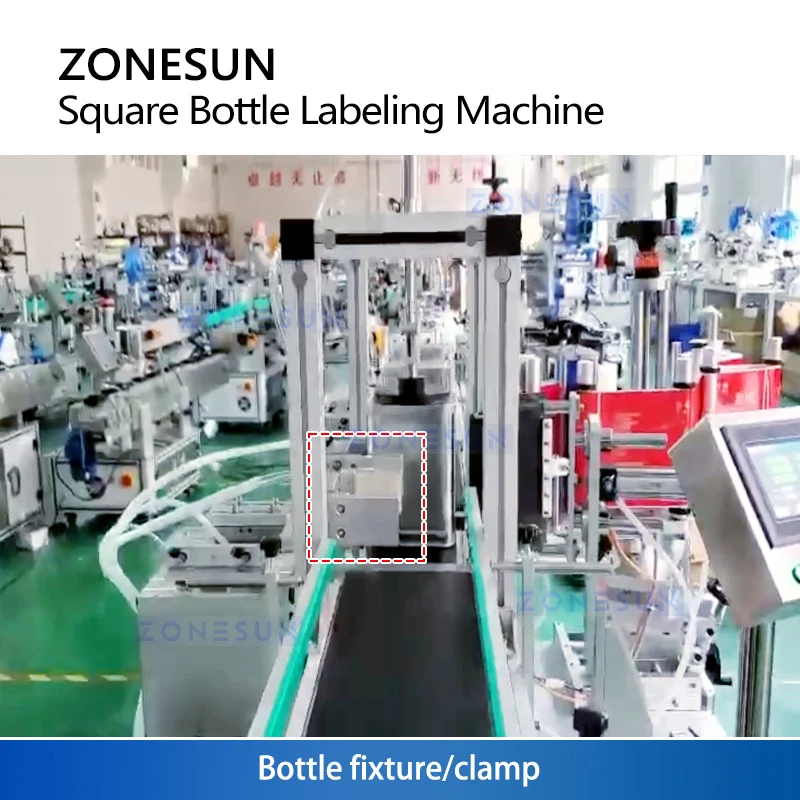

The ZONESUN ZS-SL25 is a precision-engineered labeling machine designed for large cylindrical and square containers such as jars, bottles, and cans. Featuring a robust conveyor system and a specialized gripper mechanism, it securely positions each container into a rotating mold for seamless wrap-around label application. With servo or stepper motor options, it delivers consistent labeling speeds of up to 60 containers per minute and ±1mm accuracy. Ideal for food, beverage, chemical, and cosmetic industries, this machine ensures clean, professional labeling with minimal manual intervention.
Parameter
- Model: ZS-SL25
- Voltage (V): 220V
- Stepper traction: 570W
- Frequency (Hz): 50Hz
- Weight (kg): Approx. 200kg
- Labeling accuracy (mm): ±1mm
- Labeling speed (m/min): Servo: 5–25m/min, Stepper: 5–19m/min
- Labeling speed (pcs/min): Stepper: 25–45pcs/min, Servo: 30–60pcs/min
- Conveying speed (m/min): 5–18m/min
- Applicable label length: 20–290mm
- Applicable label width (liner width/mm): 20–130mm
- Applicable label roll inner diameter (mm): φ76mm
- Applicable label roll outer diameter (mm): φ280mm
- Applicable product dimensions:
- Diameter: φ25–φ110mm
- Height: 25–150mm (customizable according to product)
