DESCRIPTION
This automatic labeling machine is a type of industrial machinery used to apply self-adhesive labels to a variety of cylindrical containers such as plastic bottles, glass bottles, and metal cans. This series of labeling machines is versatile and can be used for both single side and double side labeling of self-adhesive material labels.
The machine works by automatically feeding the containers through a conveyor belt system, where they are positioned for labeling. The self-adhesive labels are then accurately applied to the containers, either on one side or both sides, depending on the requirements.
These machines are designed to be efficient and reliable, with high accuracy and speed. They are widely used in industries such as food and beverage, pharmaceuticals, cosmetics, and more. With the ability to handle a wide range of container sizes and shapes, they offer a flexible solution for labeling needs.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
- Model：ZS-CYGDP6
- Power Supply：3-phase 380V, 50Hz, 12kW
- Air Supply：≥ 0.6 kg/cm²
- Working Speed：15,000–18,000 bottles/hour
- Conveyor Speed：0–30min, can be adjusted freely
- Labeling Accuracy：±1mm
- Required Size of Labels：Max Width: 200mm / Max Length: 280mm

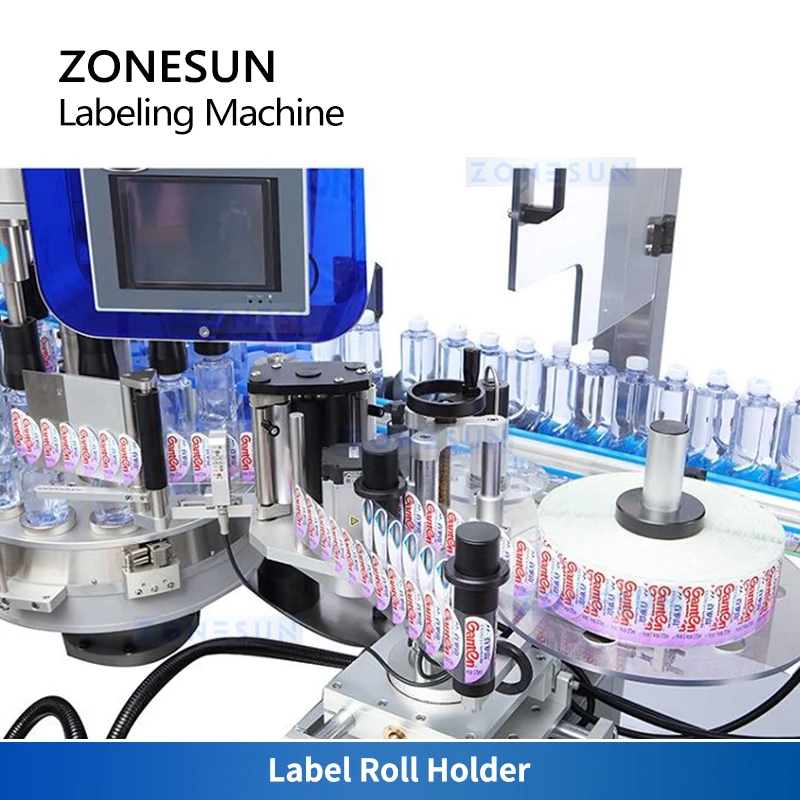

- Required Size of Label Rolls：Inner Diameter: 76mm / Outer Diameter: < 400mm
- Applicable Bottles：Max Diameter: 130mm / Height: 120–400mm
- Gluing Temperature：120–160°C

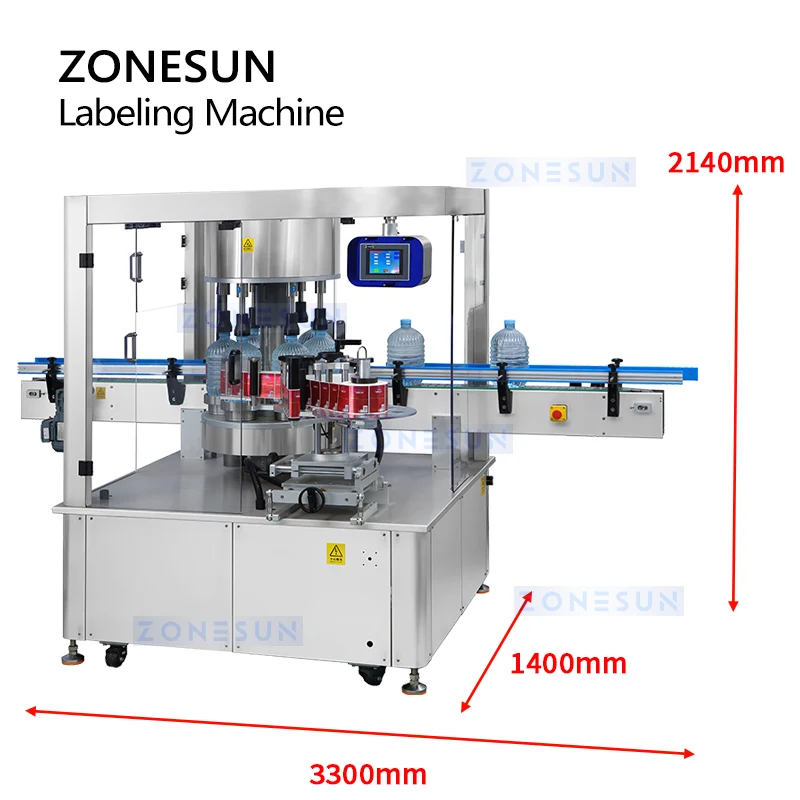

- Machine Size：(L)3300mm × (W)1400mm × (H)2140mm
- Machine Weight：Approx. 2,500KG
