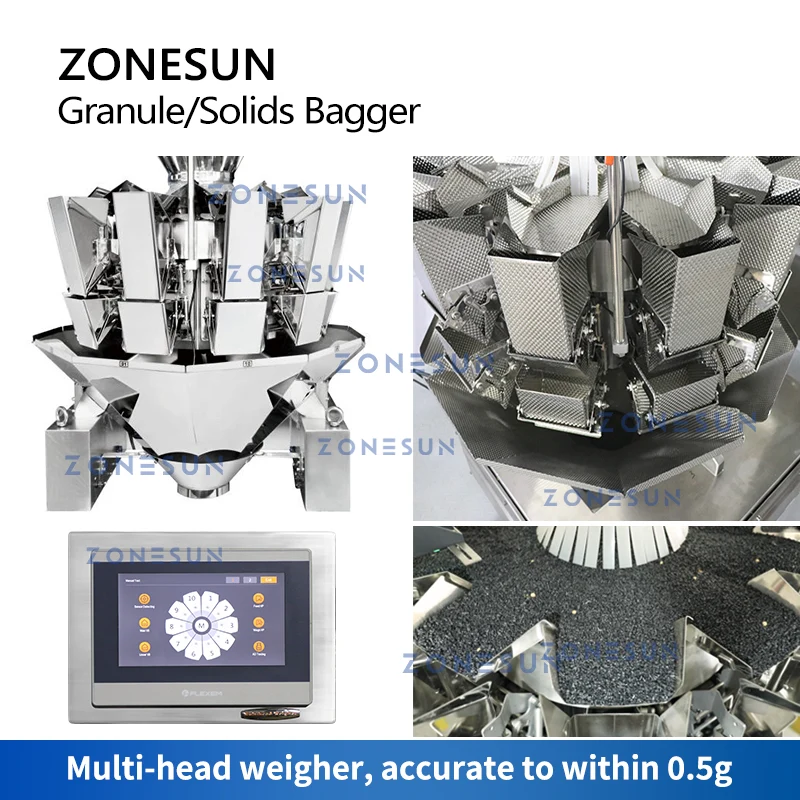

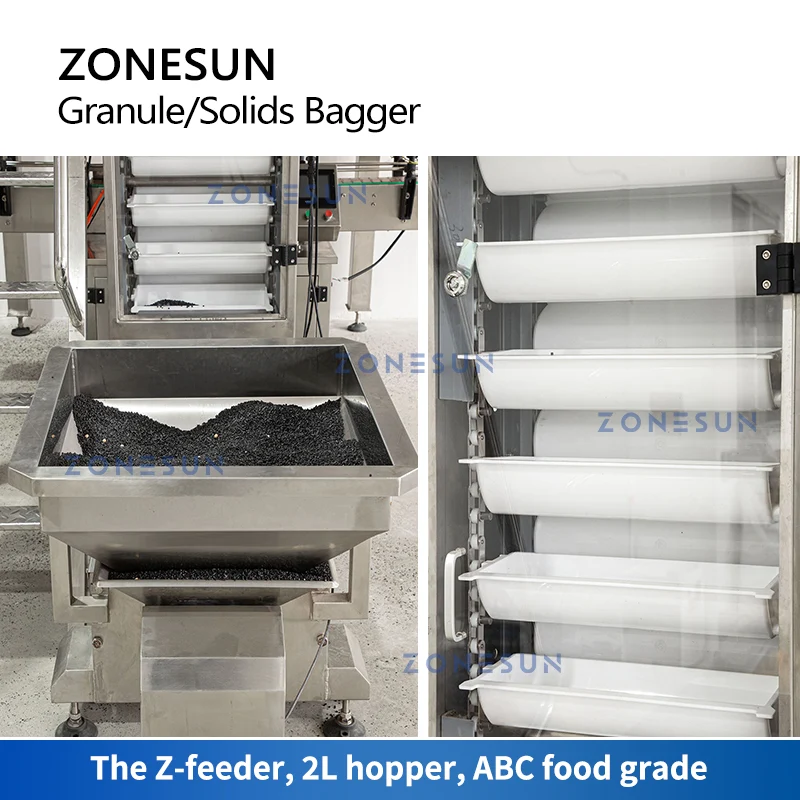

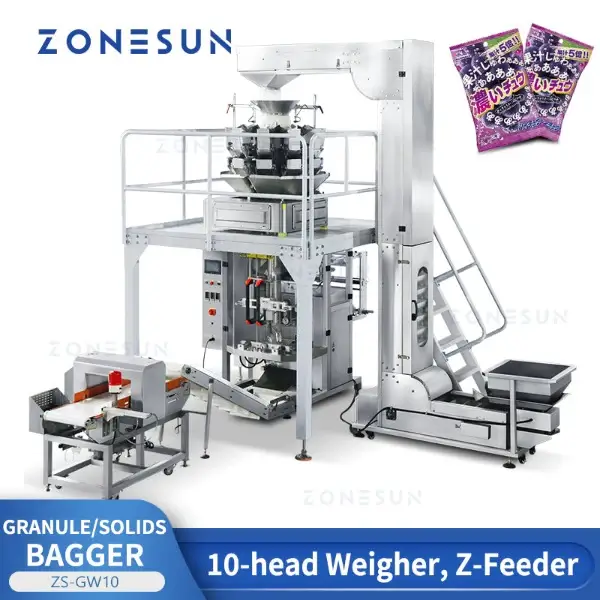

The ZS-GW10 is a high-efficiency granule bagging solution featuring a multi-head weigher for precise filling and a Z-type feeder for smooth material flow. Optional metal detector and check weigher enhance quality control. Ideal for packaging irregular-shaped items like snacks, nuts, pet food, hardware, and plastic granules.
Product Specifications — Model ZS-GW10
Parameter Details
Model ZS-GW10
Feeder Type Z-type
Weigher Configuration 10 heads
Bagging Type Back-sided sealing
Filling Range 500–3000 g
Bag Size Length: 100–400 mm <br> Width: 100–300 mm
Max Film Width 630 mm
Film Thickness 0.06–0.12 mm
Production Capacity 15–30 bags/min
Control System PLC touchscreen
Air Source Requirement 0.3 m³/min, 0.65 MPa
Power Consumption 5500 W
Voltage 380V, 50Hz, Three-phase
Machine Frame Stainless steel
Net Weight Approx. 1800 kg
