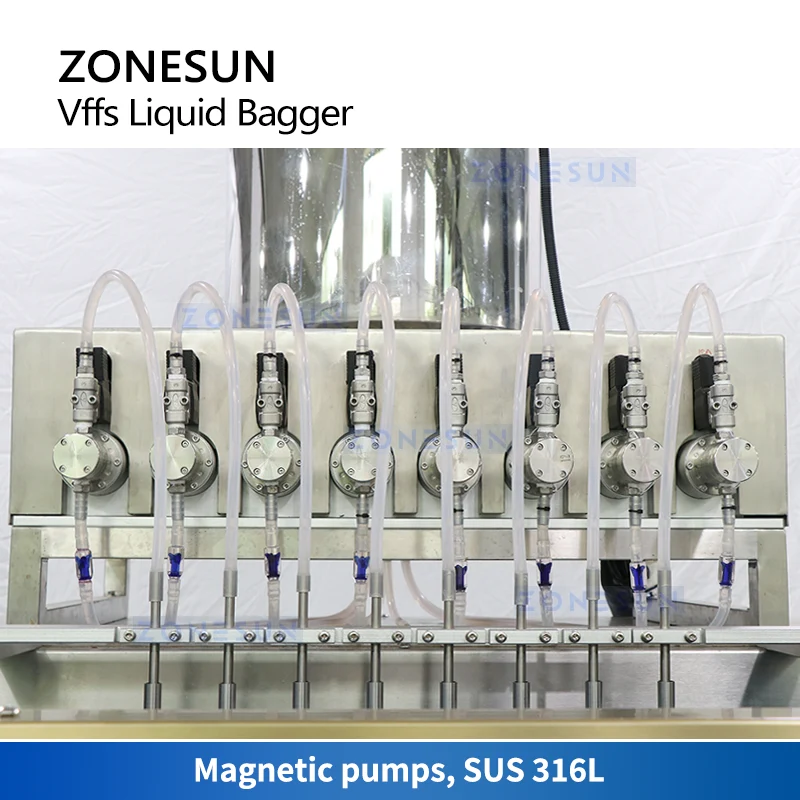

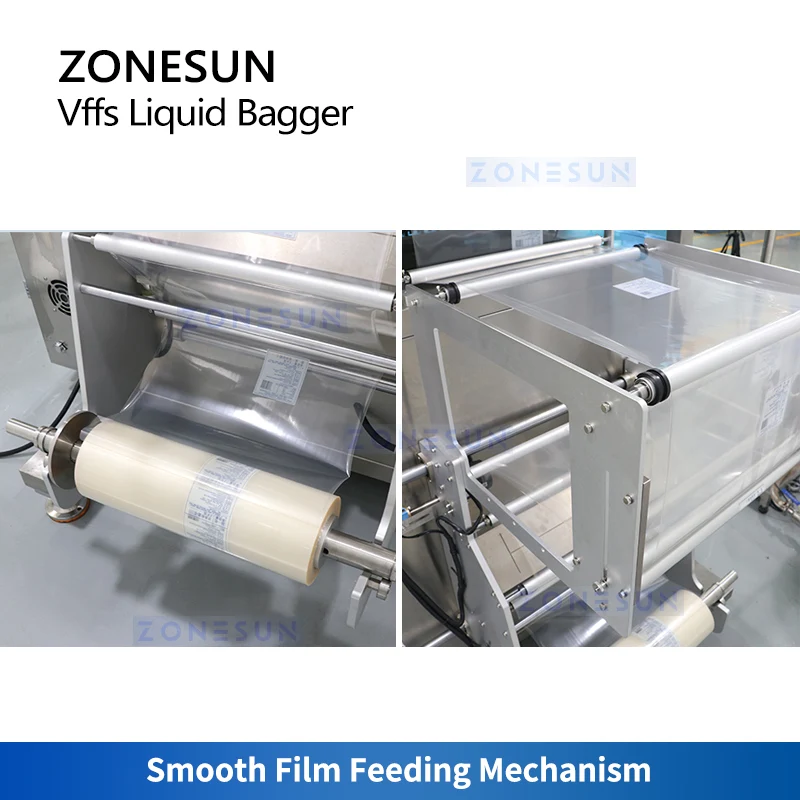

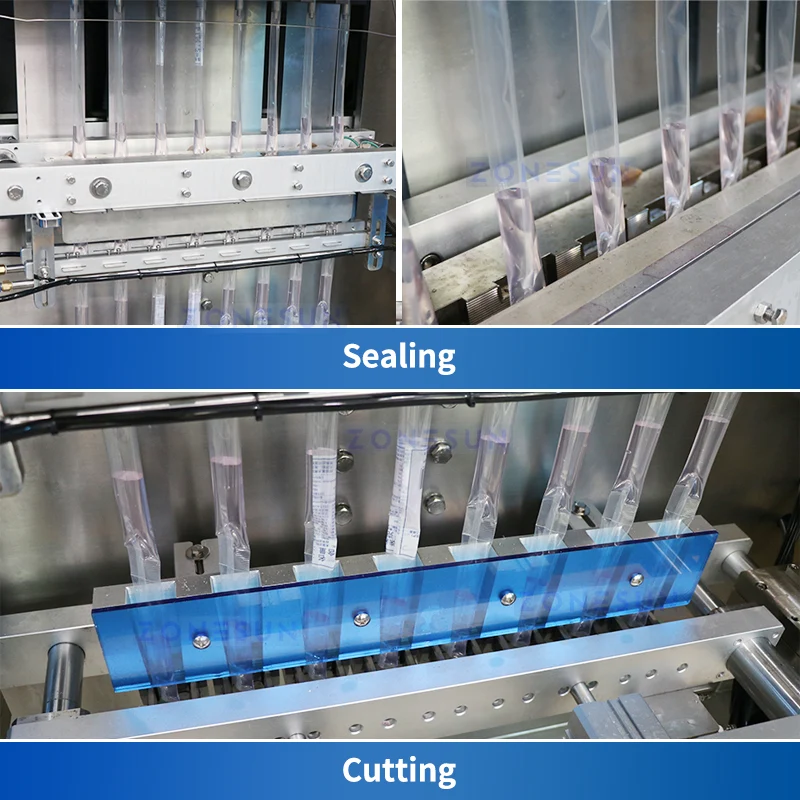

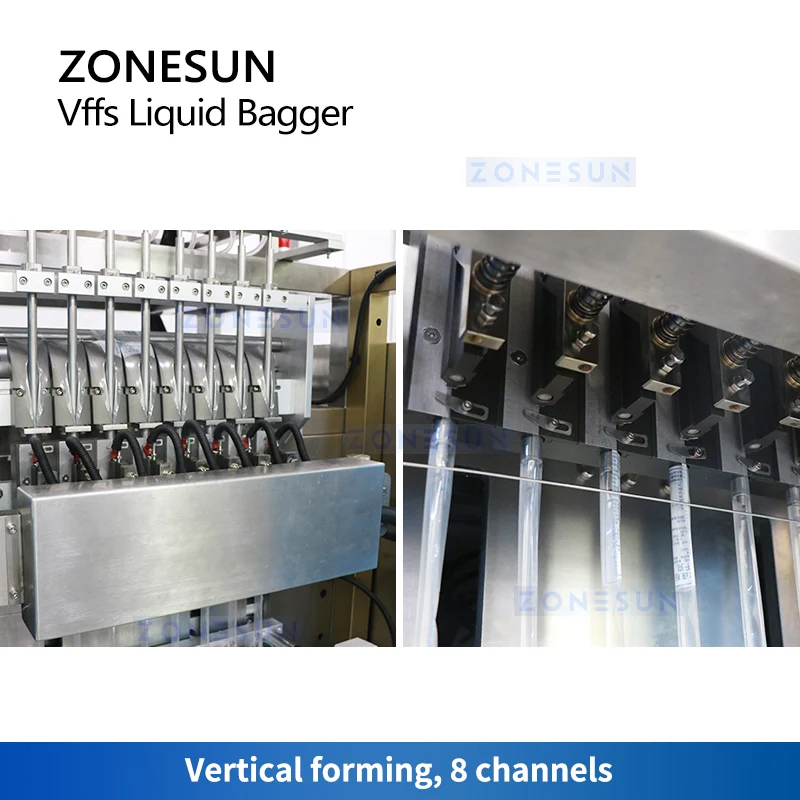

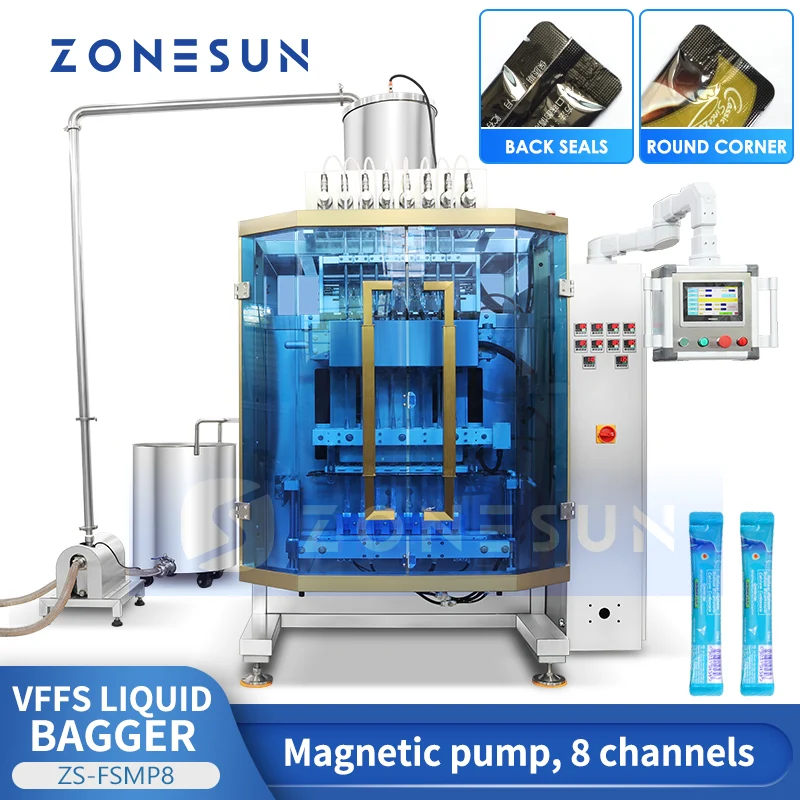

The ZONESUN ZS-FSMP8 is a high-performance VFFS (Vertical Form Fill Seal) liquid bagging machine designed to automate and optimize your packaging process. Equipped with 8 precision magnetic pumps, it delivers consistent and accurate filling across multiple channels, achieving speeds of 25–40 bags per minute per channel. The system includes a 150L tank and 50L hopper (customizable), and supports customizable bag sizes with back seals and rounded corners. Film is automatically formed, sealed, and cut to length, ensuring a clean, leak-proof finish. With advanced PLC controls and a compact monoblock design, the ZS-FSMP8 is ideal for small to medium-sized businesses packaging liquids like sauces, oils, chemicals, or cosmetics.
Technical Specifications
Model: ZS-FSMP8
Power Consumption: 9.5kW
Bagging Capacity: 25–40 bags/min per channel
Material Feeding:
- Tank: 150L
- Hopper: 50L (Customizable)
Pump Type: Magnetic Pump × 8
Number of Channels: 8
Film Size: 500mm
Bag Size:
- Length: 34–150mm
- Width: 15–26mm (Customizable)
Bagging Style:
- Back seals
- round corners
Machine Dimensions: 2100(L) × 1700(W) × 1800(H) mm
Machine Weight: 700kg
