DESCRIPTION

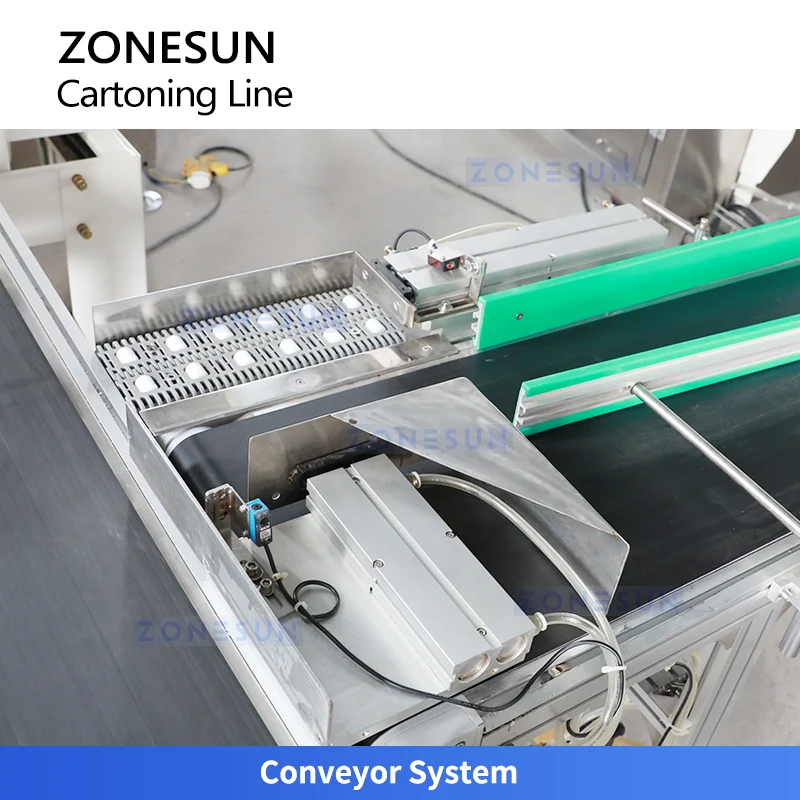

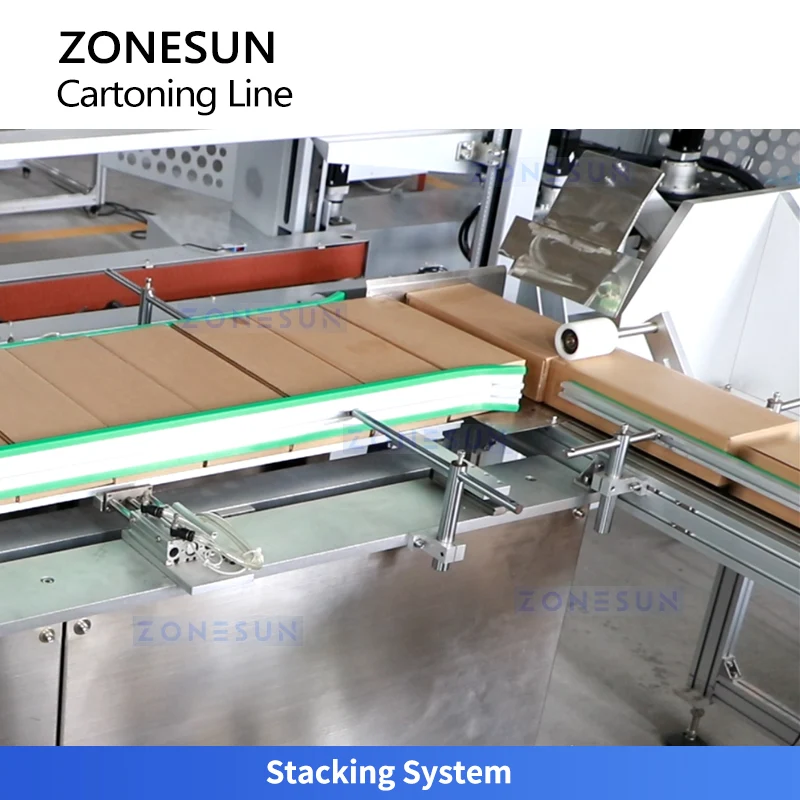

The ZONESUN ZS-FAL180V5 is a fully integrated packaging line that automates the entire process from product cartoning to final case sealing and stacking. Equipped with dual cartoning machines, it ensures precise product loading into cartons, followed by smooth transfer to a stacking mechanism. A carton erector forms corrugated cases, which are filled by a horizontal case packer using a gentle pusher system. Completed cases are sealed with tape on both top and bottom flaps, ensuring secure packaging. Designed to reduce manual labor and boost throughput, this automated solution guarantees consistent quality and efficiency for large-scale production.

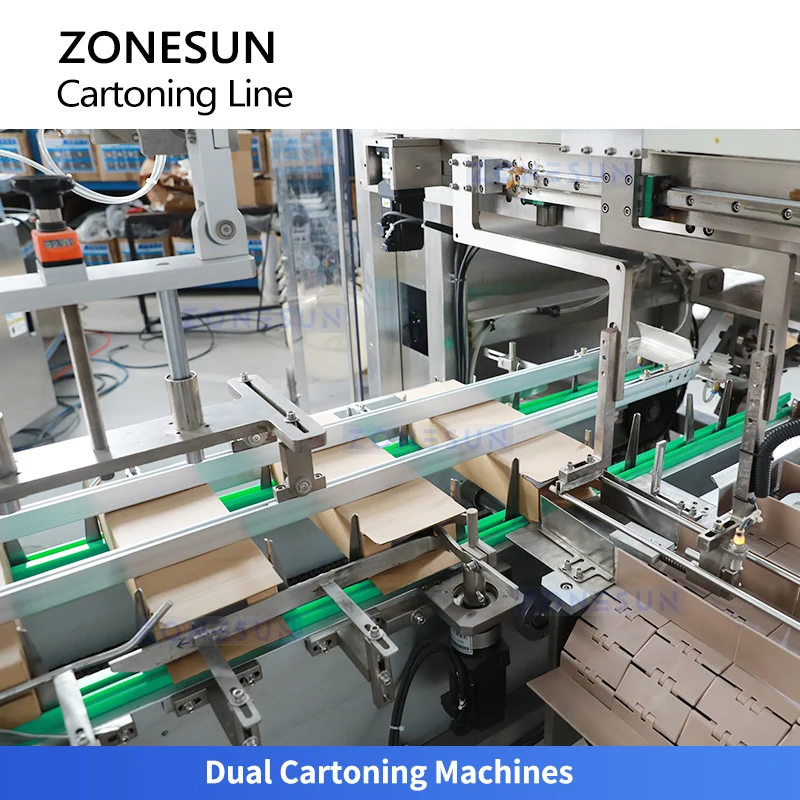

Cartoning Machine
- Carton Size: Length 80–320mm × Width 30–180mm × Height 15–120mm
- Paper Quality Range: 300 g/m² < 350 g/m² (Best) ≤ 450 g/m²
- Other Carton Requirements: Carton crease not less than 0.4mm, with pre-folding effect
- Cartoning Capacity: 25–35 cartons/minute
- Total Machine Power: 6.5 KW
- Power Supply: 220V, 50HZ
- Dimensions: Approx. 3845 × 1476 × 1478 mm
- Weight: Approx. 700 kg

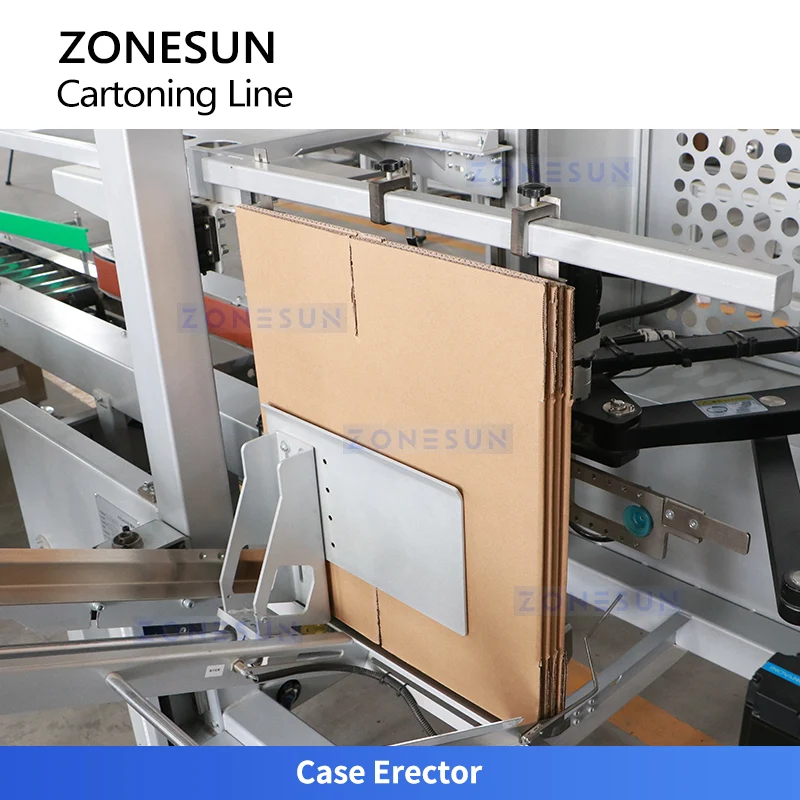

Case Erector
- Carton Size: Length 280–500mm × Width 150–400mm × Height 150–400mm
- Other Carton Requirements: Carton crease not less than 0.4mm, with pre-folding effect
- Erecting Speed: 5–15 pcs/min
- Applicable Tape Width: 48 mm / 60 mm / 75 mm (Choose one)
- Power: 1 KW
- Voltage: 220V, 50HZ
- Dimensions: Approx. 2000 × 2110 × 1317 mm
- Weight: Approx. 320 kg
Case Packer
- Carton Size: Length 80–320 mm × Width 30–180 mm × Height 15–120 mm
- Packing Capacity: 10–20 cases/minute
- Power: 5.4 KW
- Voltage: 220V, 50HZ
- Dimensions: Approx. 3845 × 1476 × 1478 mm
- Weight: Approx. 700 kg
Case Sealer (Model: FD4050)
- Case Size: Length 150–∞ mm × Width 120–400 mm × Height 200–500 mm
- Other Case Requirements: Case crease not less than 0.4 mm, with pre-folding effect
- Belt Speed: 20 meters/minute
- Applicable Tape Width: 48 mm / 60 mm / 75 mm (Choose one)
- Power: 0.4 KW
- Voltage: 220/380V, 50HZ
- Dimensions: Approx. 1050 × 820 × 1140 mm
- Weight: Approx. 150 kg
