Description

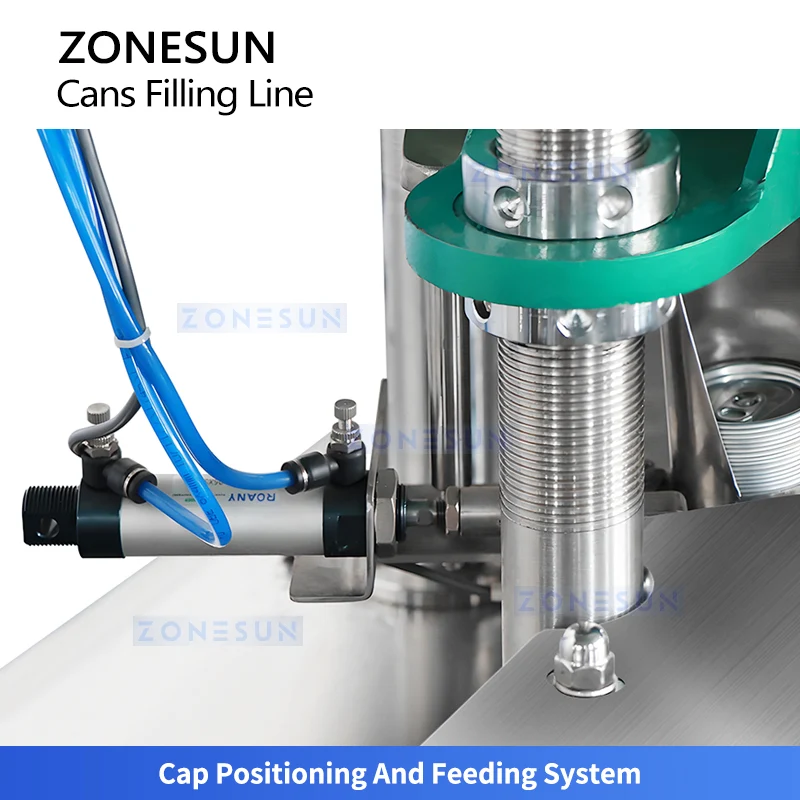

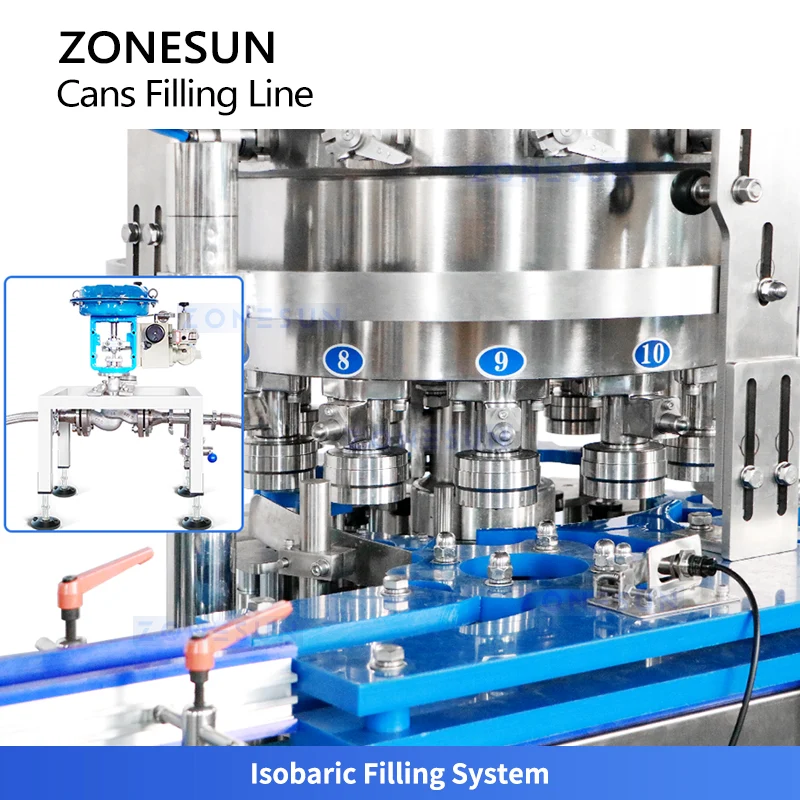

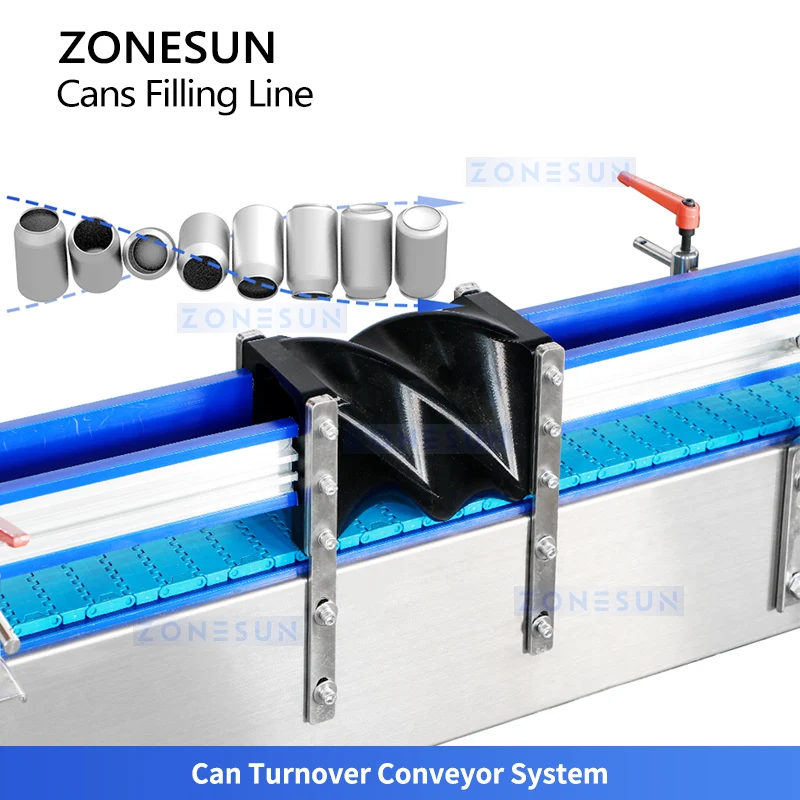

The ZONESUN ZS‑FAL180A11 is an automatic isobaric filling and packaging line designed for carbonated beverage cans, integrating can rinsing, turnover conveying, isobaric filling, cap positioning, and magnetic torque capping into a streamlined high-speed workflow. Operating at up to 2000 cans per hour, the system uses specialized diaphragm valves, automatic liquid-level control, and no-can-no-fill protection to ensure accurate filling, hygienic processing, and stable sealing performance. Suitable for soda, sparkling water, flavored drinks, beer, energy drinks, and other CO₂ infused beverages
Specifications

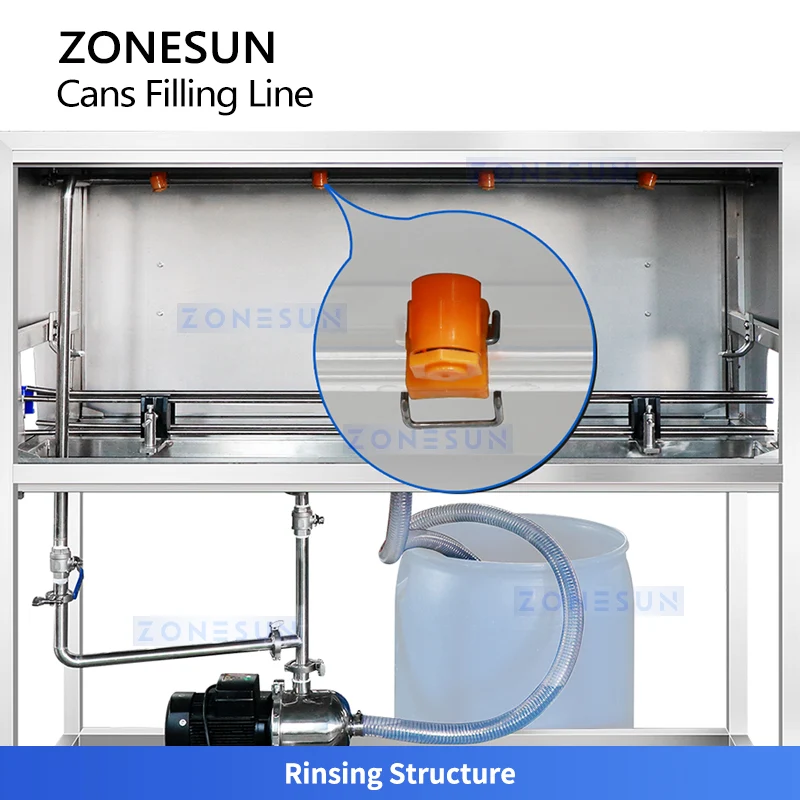

Bottle Rinsing Machine (ZS-WBC1)
- Type: Bottle Rinsing Machine
- Voltage: 110/220V/380V 50–60Hz (customizable)
- Power: 0.45 kW
- Working Capacity: 1000–2000 BPH
- Suitable Can Size: Customizable
- Machine Size: 2500 × 600 × 1650 mm
- Package Size: 2210 × 970 × 1850 mm
- Package Weight: About 370 kg
Isobaric Filling Machine (ZS-AFI12)
- Voltage: 380V / 50Hz
- Power: 1.1 kW
- Production Capacity: 1000–2000 BPH
- Suitable Can Diameter: φ40–80 mm (specify one size)
- Suitable Can Height: 50–150 mm (specify one size)
- Machine Size: 1200 × 1100 × 1600 mm
- Machine Weight：About 700kg
- Package Size: 1460 × 1310 × 2210 mm
- Package Weight: About 1005 kg
Can Seaming Machine (ZS-AFK300S)
- Power: 0.75 kW
- Capping Heads: 1 (customizable)
- Production Capacity: 2000 BPH
- Suitable Can Diameter: φ40–80 mm (specify one size)
- Suitable Can Height: 50–150 mm (specify one size)
- Machine Size: 3910 × 700 × 1820 mm
- Package Size: 1060 × 960 × 1880 mm
- Package Weight: About 340 kg
