DESCRIPTION

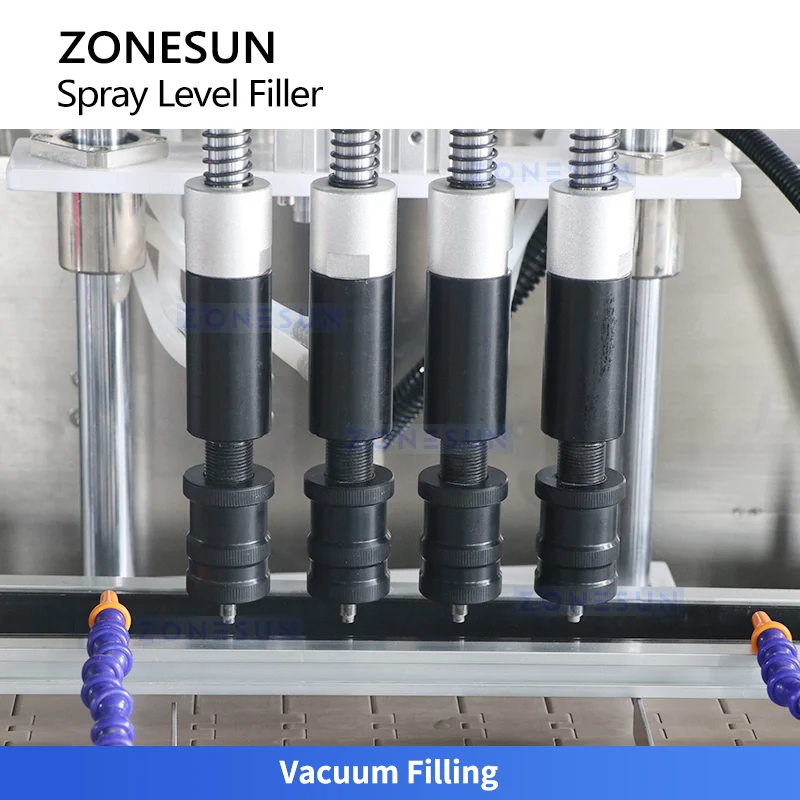

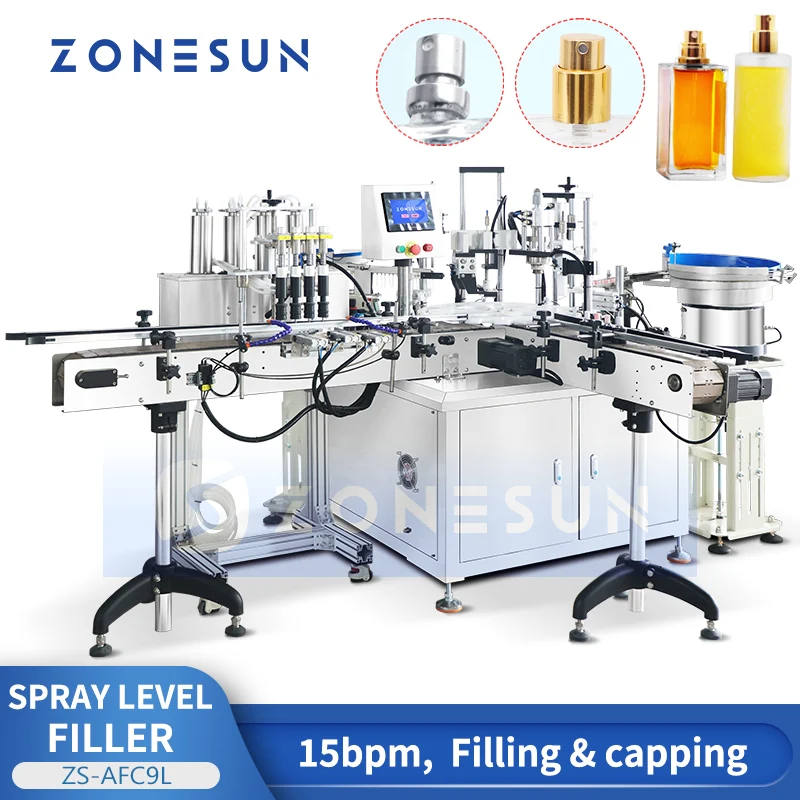

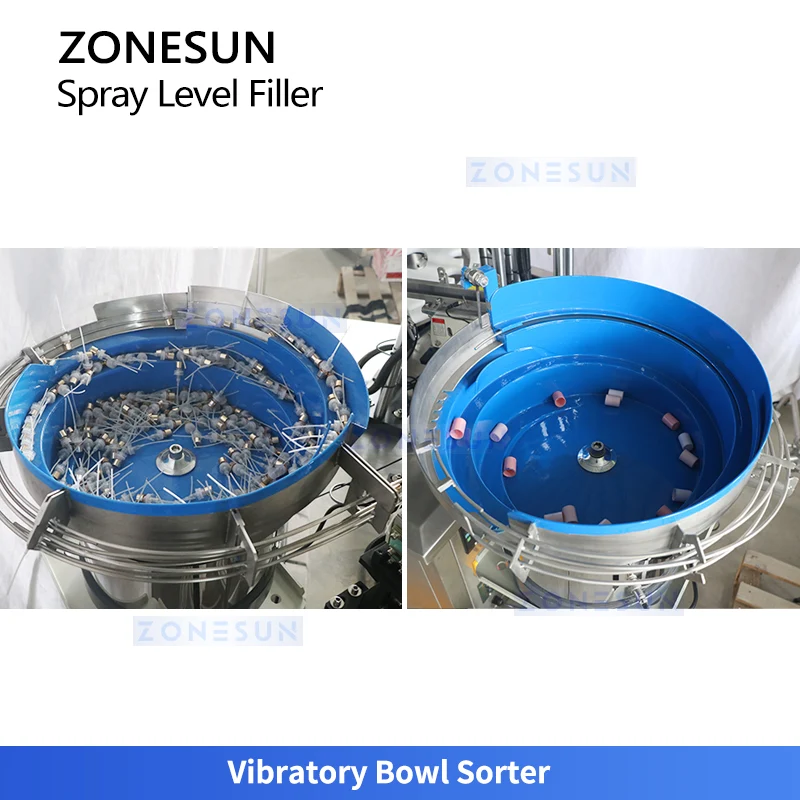

Introducing the fully automated perfume packaging machine, engineered for efficiency and precision. This all-in-one solution streamlines your production process, integrating vacuum filling, automatic nozzle feeding via vibratory bowl, nozzle crimping, automatic outer cap feeding via vibratory bowl, and outer cap pressing. Achieve a high production capacity of up to 900 bottles per hour (BPH) with this state-of-the-art system. Minimize downtime and maximize output with a machine designed for reliability and ease of use. Perfect for businesses looking to scale up their perfume manufacturing operations.
Parameter
- Model: ZS-AFC9L
- Voltage: 220V / 110V, 50–60Hz
- Power: 1300W
- Filling Principle: Vacuum Liquid Level
- Filling Heads: 4 Heads (Can be customized)
- Production Capacity: About 15 bottles/min (depending on filling material and bottle size)
- Filling Range: 10–200 ml (Can be customized)
- Max Flow Rate: 2 L/min per head
- Applicable Bottle Size: Φ25–100 mm, Height ≤300 mm (Customizable)
- Applicable Cap Size: Φ≥10 mm (Customizable)
- Machine Size:
- Main Machine: About 2700 × 2080 × 1480 mm
- Vibratory Bowl Sorter 1: About 340 × 340 × 1100 mm
- Vibratory Bowl Sorter 2: About 340 × 340 × 1130 mm
- Package Size: About 2440 × 1800 × 1670 mm
- Package Weight: About 680 kg
