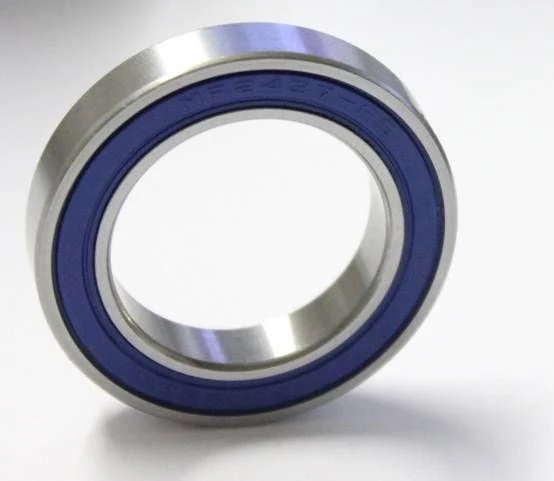

Deep Groove Ball Bearing – 24x37x7 mm (resp. 37x24x7 mm)
| Loadability: | |
| Corrosion resistance: | |
| Impermeability: | |
| Speed range: |
| SKU | 24972-B |
|---|---|
| Manufacturer | CQ |
| Type | Deep Groove Ball Bearing |
| Specialty | Special size bearing |
| Dimensions (mm) – Inside x outside x width | 24 x 37 x 7 mm |

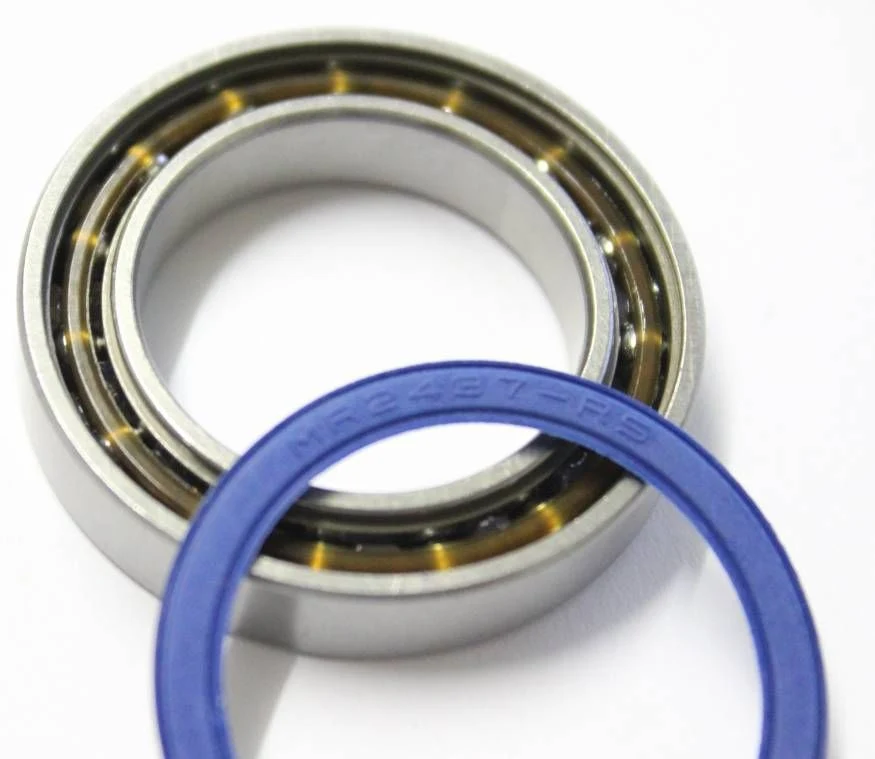

| Cover | V / LLB: Rubber seals (NBR) on both sides which run in separate ”V” grooves; High sealing effect with low seal friction. 100-120° C max. |
| Rings material | Chrome alloyed steel (100Cr6 / SAE 52100 / 1.3505); Hardened; Hardness: ~60 HRC; 150° C max. |
| Ball material | Chrome steel (100Cr6 / SAE 52100) – Grade: G10 (precision balls) – Hardness: ~60 HRC |
| Cage material | Nylon / polyamide cage (”resin crown”) – (PA66); Low coefficient of friction; Very resistant; 80° C max. |
| Tolerance class | ABEC-3 bearing (DIN/ISO P6); Precision bearing |
| Clearance | C0 (Standard) |
| Radial play | min.: 0.005 mm / max.: 0.02 mm |
| Inner diameter (mm) | 24 |
| Inner diameter tolerance | +0 / -0.008 mm |
| Outer diameter (mm) | 37 |
| Outer diameter tolerance | +0 / -0.009 mm |
| Width (mm) | 7 |
| Outer ring surface | Cylindrical outer ring (standard) |
| Angle (Inner ring / Outer ring) | 90°/90° (Standard) |
| Conductivity and magnetism | Electrically conductive: Yes – Magnetic: Yes |
| Inner diameter (inch) | 0,94488 |
| Outer diameter (inch) | 1,45669 |
| Width (inch) | 0,27559 |
