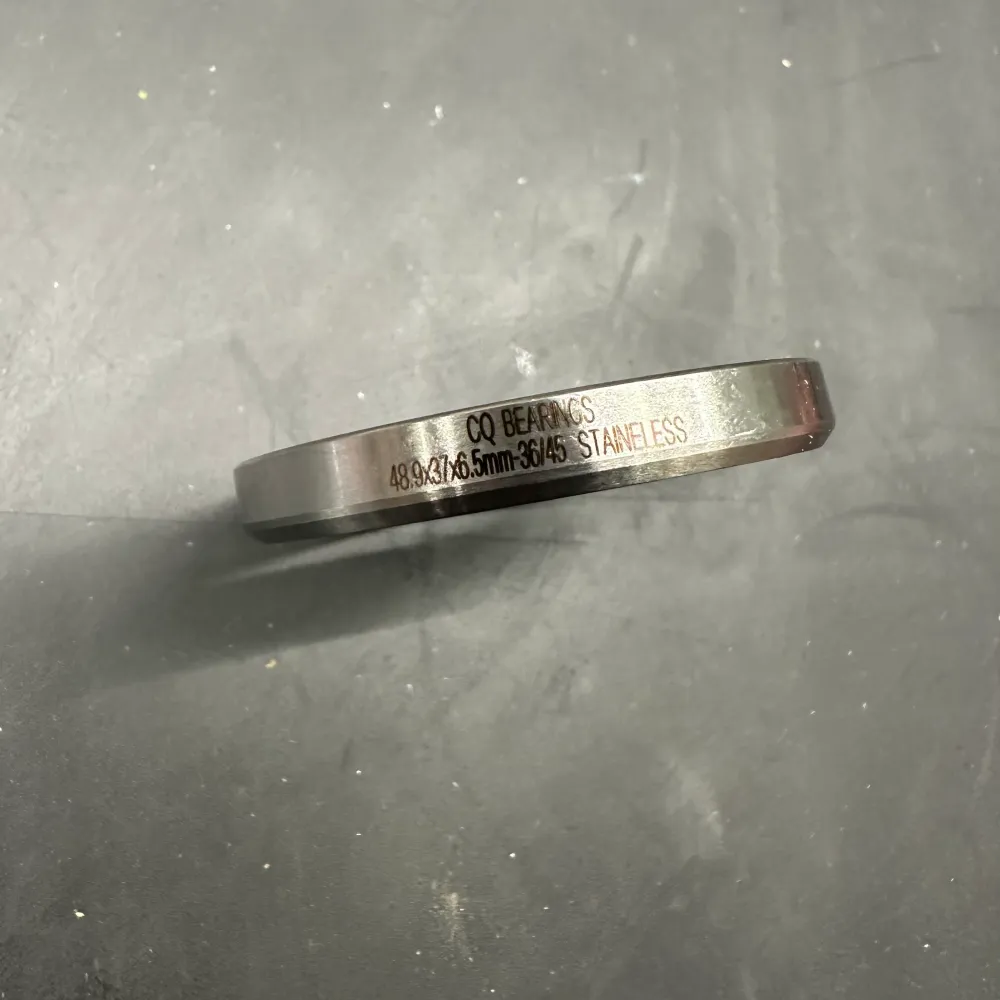

Bearing for headset / steering head bearing – 37×48.9×6.5 mm(resp. 48.9x37x6.5 mm)
| Loadability: | |
| Corrosion resistance: | |
| Impermeability: | |
| Speed range: |
| SKU | MR031SS |
|---|---|
| Manufacturer | Neutral |
| Type | Bearing for headset / steering head bearing |
| Specialty | Strong seal protection / High grease amount |
| Dimensions (mm) – Inside x outside x width | 37 x 48.9 x 6.5 mm |
| Cover | Rubber seals / strong contact seals and/or seals that run in a separate groove (good sealing, easy running and little wear of the sealing lip) |
| Rings material | Stainless steel (AISI440 / 1.4125 / X10CrMo17); Hardened stainless steel (with iron content) Hardness: ≥58HRC; 230°C max., More salt water resistant than AISI420 |
| Ball material | Stainless steel (AISI440 / 1.4125 / X10CrMo17); Hardened stainless steel (with iron content) Hardness: ≥58HRC; 230°C max., More salt water resistant than AISI420 |
| Cage material | Nylon / polyamide cage (”resin crown”) – (PA66); Low coefficient of friction; Very resistant; 80° C max. |
| Tolerance class | ABEC-3 bearing (DIN/ISO P6); Precision bearing |
| Clearance | C0 (Standard) |
| Radial play | min.: 0.006 mm / max.: 0.02 mm |
| Inner diameter (mm) | 37 |
| Inner diameter tolerance | +0 / -0.010 mm |
| Outer diameter (mm) | 48.9 |
| Outer diameter tolerance | +0 / -0.009 mm |
| Width (mm) | 6.5 |
| Outer ring surface | Cylindrical outer ring (standard) |
| Angle (Inner ring / Outer ring) | 36°/45° |
| Conductivity and magnetism | Electrically conductive: Yes – Magnetic: Yes |
| Inner diameter (inch) | 1-3/8“ |
| Outer diameter (inch) | 1,925197 |
| Width (inch) | 0,255906 |
