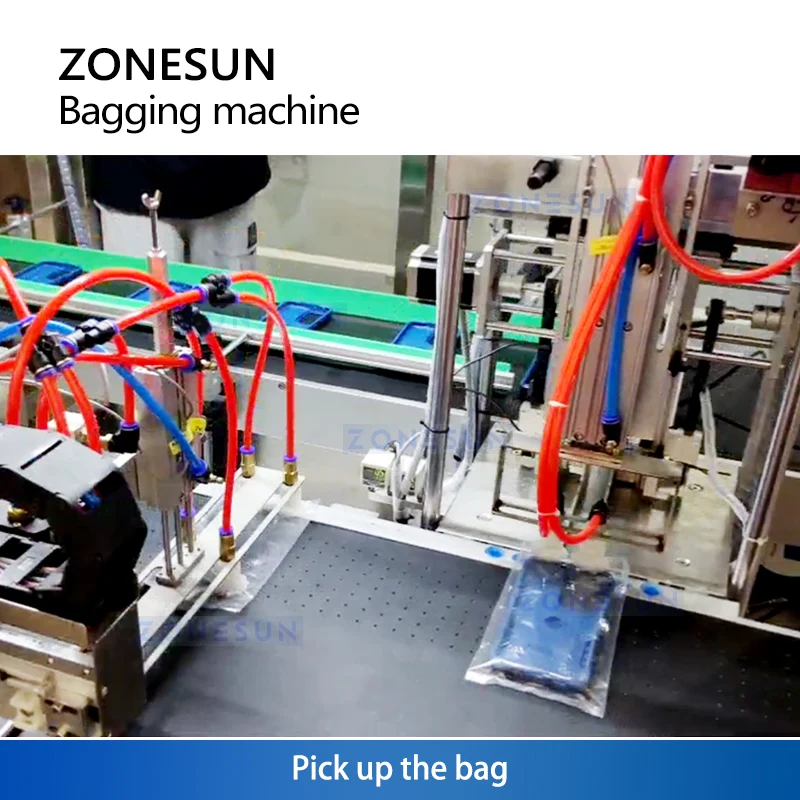

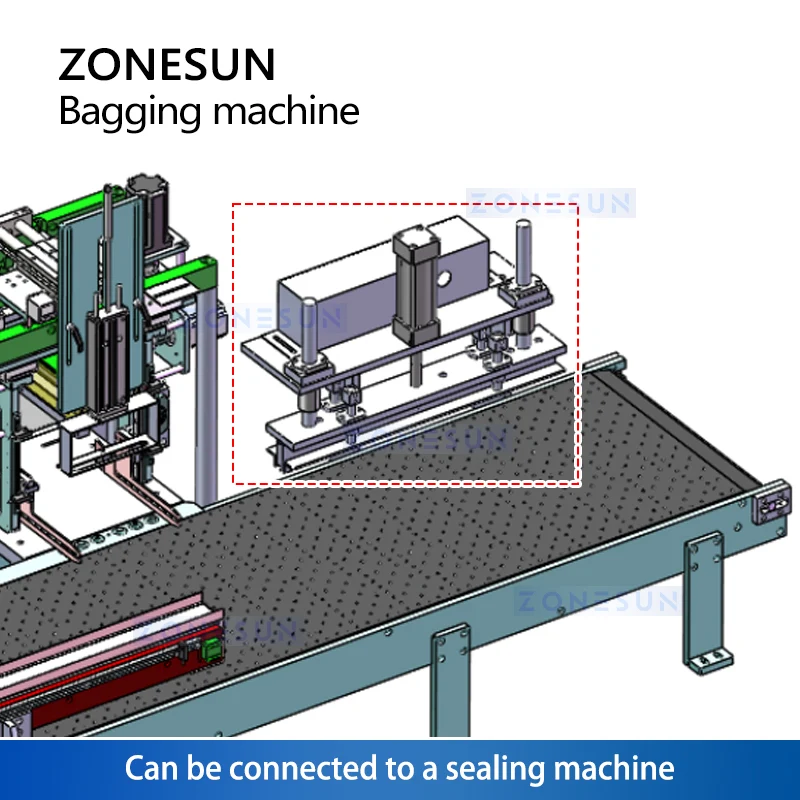

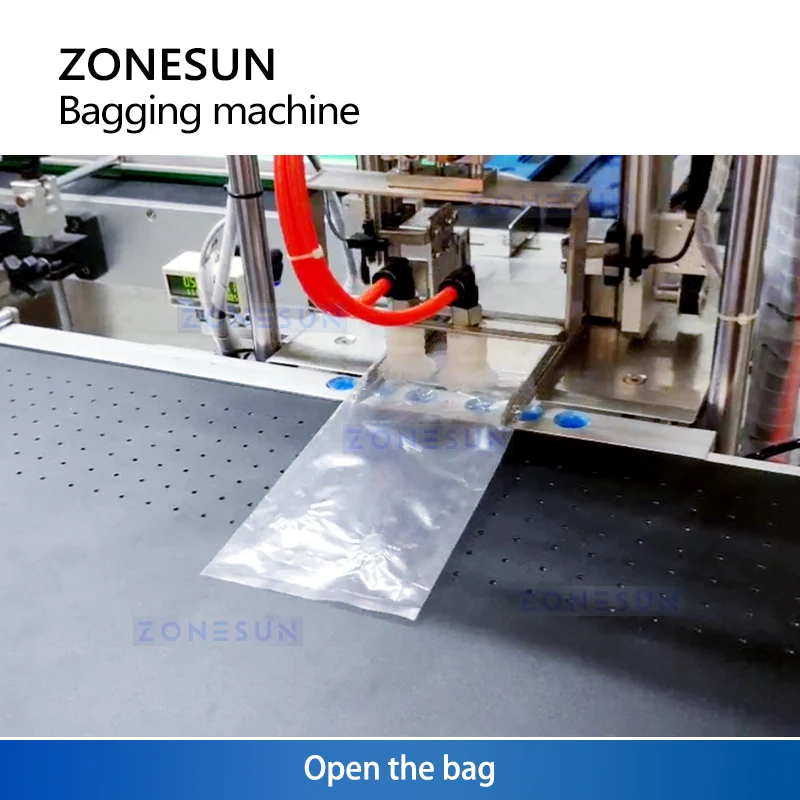

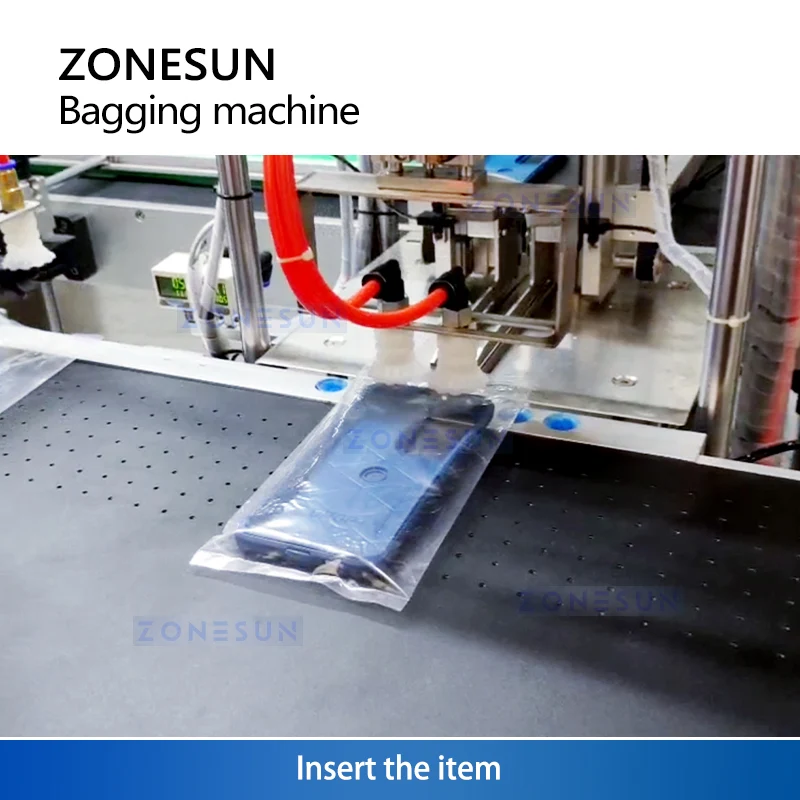

The ZONESUN ZS-ZD200 is a high-speed, fully automated bagging machine designed to optimize packaging efficiency across diverse industries. It integrates vacuum-assisted bag transport, pneumatic product loading, and optional heat or vacuum sealing to deliver consistent, high-quality results. With a customizable speed of 10–20 bags per minute and support for PE, aluminum foil, and composite bags, this system handles a wide range of product sizes and bag formats. Built for precision and reliability, it features automatic fault detection, servo control, and a >98% equipment yield—ideal for food, chemical, and hardware packaging lines.
Parameter
- Model: ZS-ZD200
- Packaging speed: 10–20 bags/min (customizable based on product attributes)
- Bag types: PE flat bags, aluminum foil bags, composite bags
- Equipment yield: >98%
- Function requirements: Alarm and stop if bag suction fails
- Applicable product size: Customizable as required
- Bag size: Width 100–200mm, Length 100–350mm (based on actual samples)
- Power supply: 220V/50Hz
- Air pressure: 0.6Mpa
- Air consumption: Approx. 500L/min
- Power: Approx. 4kW
- Machine weight: Approx. 400kg
- Machine dimensions (L×W×H): Approx. 2400×1600×1800mm
