Description

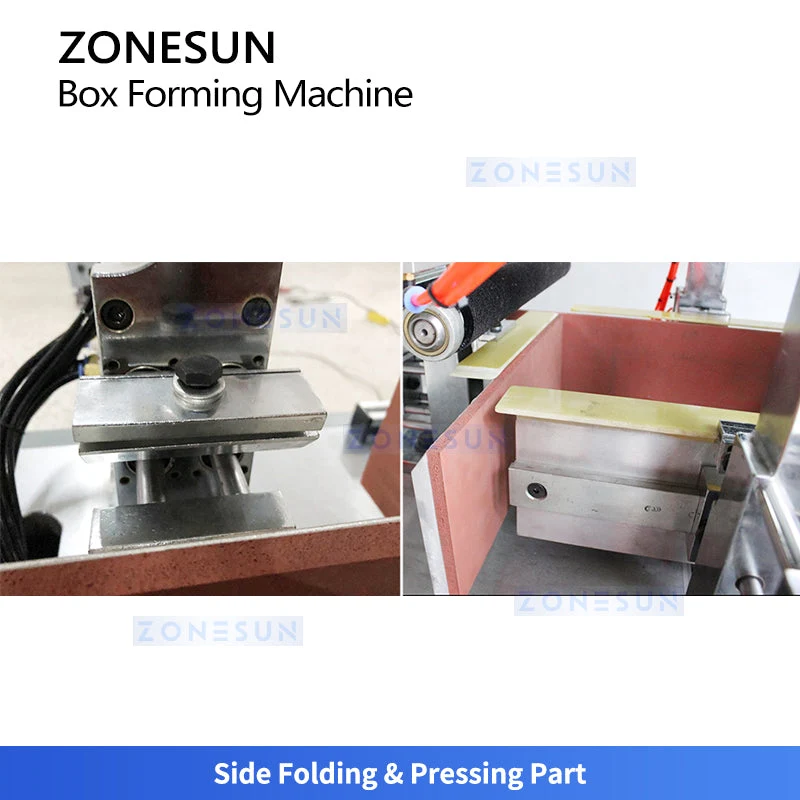

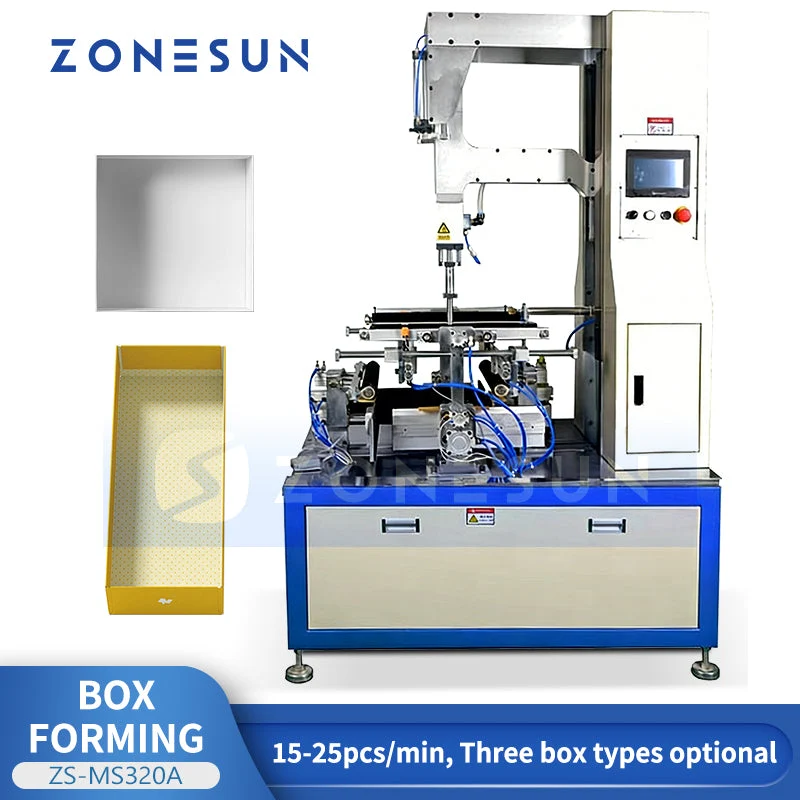

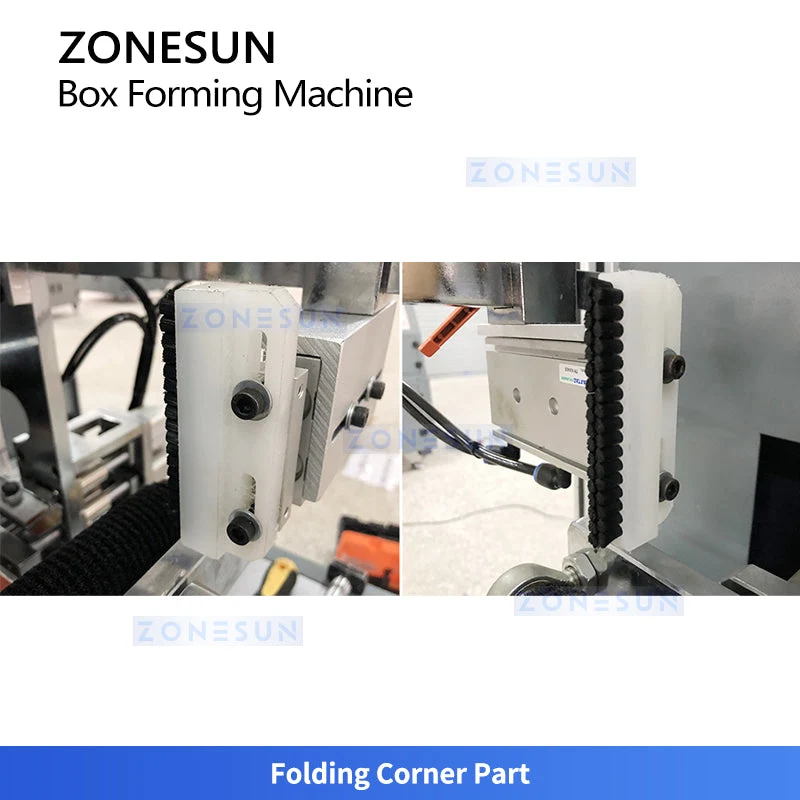

The ZONESUN ZS-MS320A is a semi-automatic rigid drawer box forming machine designed for high-end packaging applications such as luxury boxes, gift boxes, and drawer inner boxes. Operating at 15–25 pcs/min, it transforms pre-glued paper and greyboard into perfectly formed rigid boxes through a precise sequence of wrapping, folding, and pressing actions. Using servo-driven mechanisms, durable pressing boards, and multi-stage forming units, the machine ensures tight edges, clean corners, and a bubble-free surface. With quick mold changeover and support for three box types, it offers excellent flexibility for small to medium-scale premium packaging production.
ZS‑MS320A
- Max Box Size: 420 × 320 × 100 mm
- Min Box Size: 40 × 40 × 10 mm
- Speed: 15–25 pcs/min
- Motor Power: 1.5 kW
- Voltage: 220 V, 50 Hz
- Air Pressure: 0.8 MPa
- Weight: 650 kg
- Dimension: 800 × 1110 × 2030 mm
- Package Dimension: 900 × 1280 × 1930 mm
ZS‑MS520A
- Max Box Size: 520 × 420 × 150 mm
- Min Box Size: 80 × 80 × 10 mm
- Speed: 15–25 pcs/min
- Motor Power: 1.5 kW
- Voltage: 220 V, 50 Hz
- Air Pressure: 0.8 MPa
- Weight: 850 kg
- Dimension: 1010 × 1280 × 2300 mm
- Package Dimension: 1110 × 1450 × 2200 mm
ZS‑MS620A (Customized Model)
- Max Box Size: 620 × 520 × 150 mm
- Min Box Size: 120 × 100 × 15 mm
- Speed: 15–25 pcs/min
- Motor Power: 1.5 kW
- Voltage: 220 V, 50 Hz
- Air Pressure: 0.8 MPa
- Weight: 950 kg
- Dimension: 1110 × 1380 × 2300 mm
- Package Dimension: 1210 × 1600 × 2200 mm
- Remark: Special size customizable (sample + size required)
