The ZONESUN ZS-MS2TGF is a full-automatic 2-nozzle facial mask liquid filling and sealing machine designed for high-efficiency small-dose packaging. Featuring a dual-channel bag holder for stable positioning, a magnetic pump with ±0.3 g filling accuracy, and advanced heat-sealing jaws, it delivers consistent output at 1,800–2,880 pcs/h. Integrated date coding and conveyor output make it a complete, streamlined solution for cosmetic and personal care production lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-MS2TGF |
| Voltage | 220V, 50–60 Hz |
| Power | Approx. 1 kW |
| Working Speed | 1,800–2,880 pcs/h |
| Filling Range | 1–50 g |
| Filling Accuracy | ±0.3 g |
| Pump Type | Magnetic pump |
| Filling Rate | 5 L/min |
| Bag Size (L×W) | 130–230 mm × 80–160 mm |
| Air Pressure | 0.6–0.8 MPa |
| Air Consumption | 150 L/h |
| Air Inlet Diameter | 12 mm |
| Machine Dimensions (L×W×H) | Approx. 700 × 800 × 1,450 mm |
| Machine Weight | Approx. 120 kg |
Note: Requires an air supply of 0.6–0.8 MPa. Images shown are for reference only. Actual product may vary due to product enhancement or change.
✅ Key Features

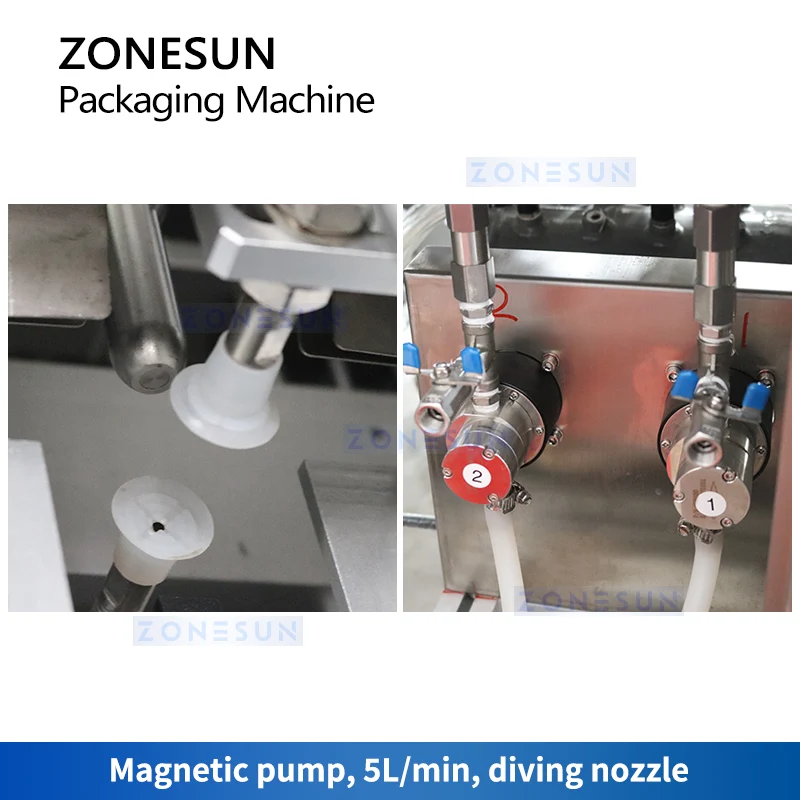

- High Filling Accuracy — ±0.3 g precision via magnetic pump at 5 L/min flow rate
- High Speed Output — 1,800–2,880 pcs/h for efficient production runs

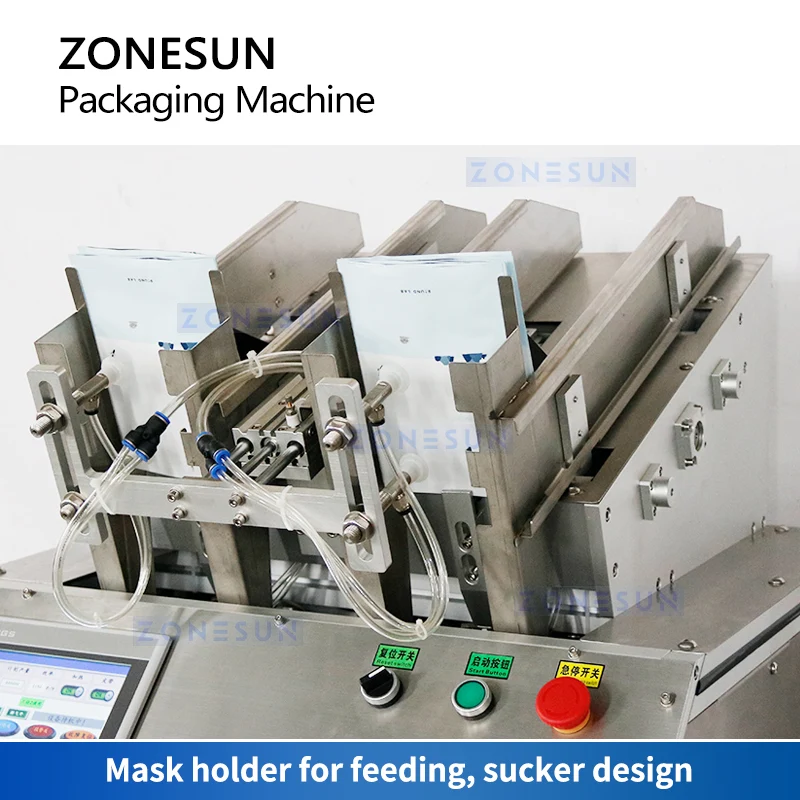

- Dual-Channel Bag Holder — Ensures stable bag positioning during filling and sealing

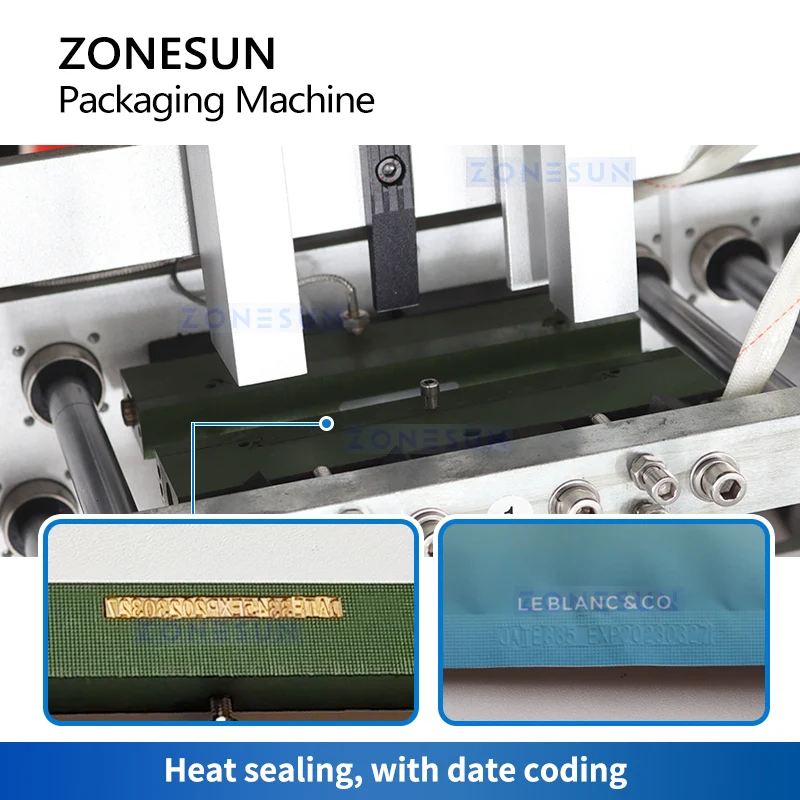

- Advanced Heat Sealing — Consistent, airtight seals for liquid cosmetic pouches
- Integrated Date Coding — Automatic batch and date printing for full traceability
- Wide Bag Size Range — Supports bags from 130–230 mm (L) × 80–160 mm (W)
- Cosmetic-Grade Application — Ideal for facial masks, essence, eye drops, essential oils, and small-dose liquids
