Description

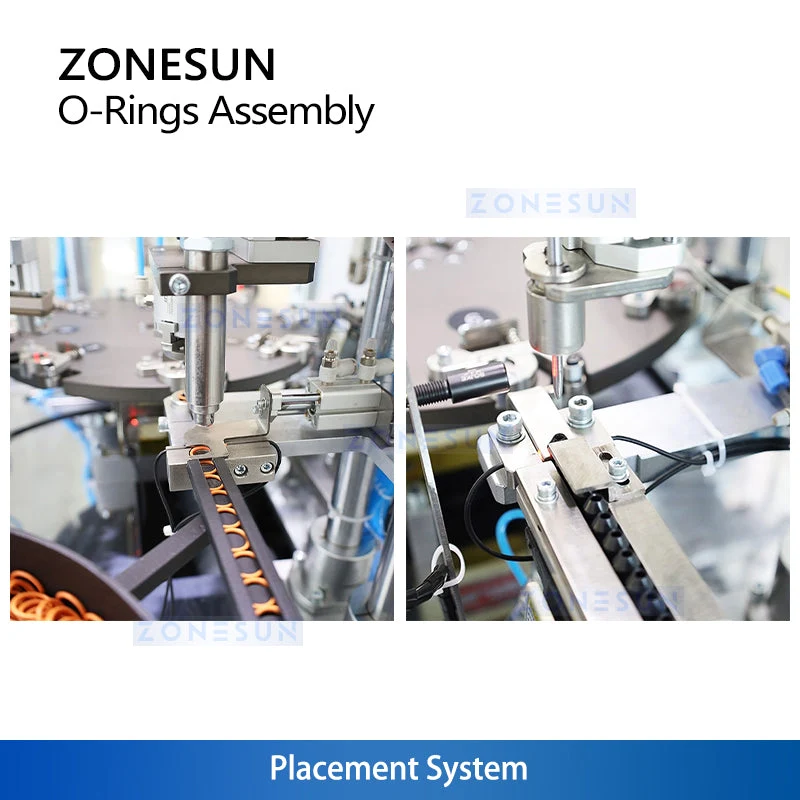

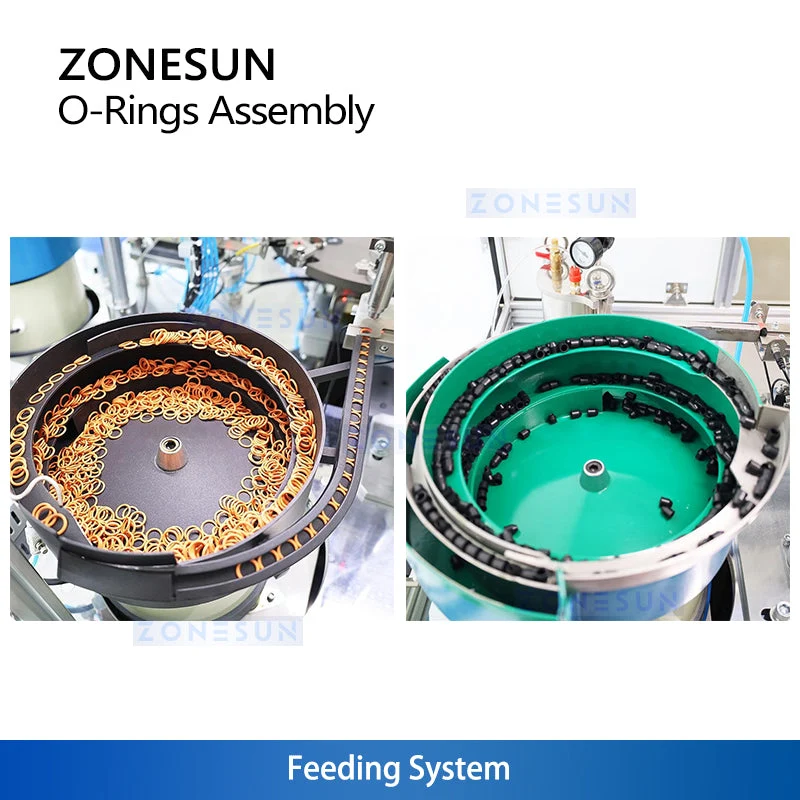

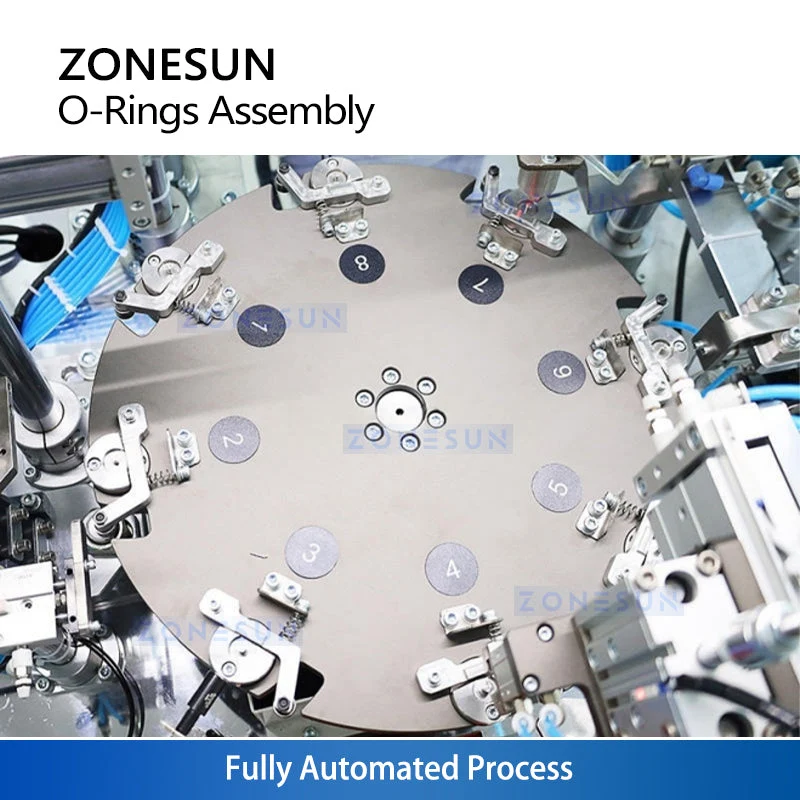

The ZONESUN ZS-J0A02 is a fully automated O-ring assembly machine designed for precision sealing applications. It efficiently installs O-ring seals onto components such as valves, connectors, and pump bodies. With a production capacity of 1,500-3,600 pcs/hr and supporting O-rings from OD 4-50 mm, it integrates PLC control, vibratory feeding, and automated placement systems. The machine achieves >98% yield, consistent sealing quality, and minimal labor intervention. Its flexible design allows interchangeable tooling for different O-ring sizes and materials. Equipped with transparent protective enclosures and emergency stop buttons, it ensures operator safety while maintaining efficient, reliable production.
Parameter
- Model: ZS‑J0A02
- Production Capacity: 1,500–3,600 pcs/hr
- Yield Rate: >98%
- Power Supply: AC 220 V ±15%, 50/60 Hz
- Rated Power: 0.5–1.5 kW
- Air Pressure: 0.4–0.8 MPa
- O Ring Range: OD 4–50 mm

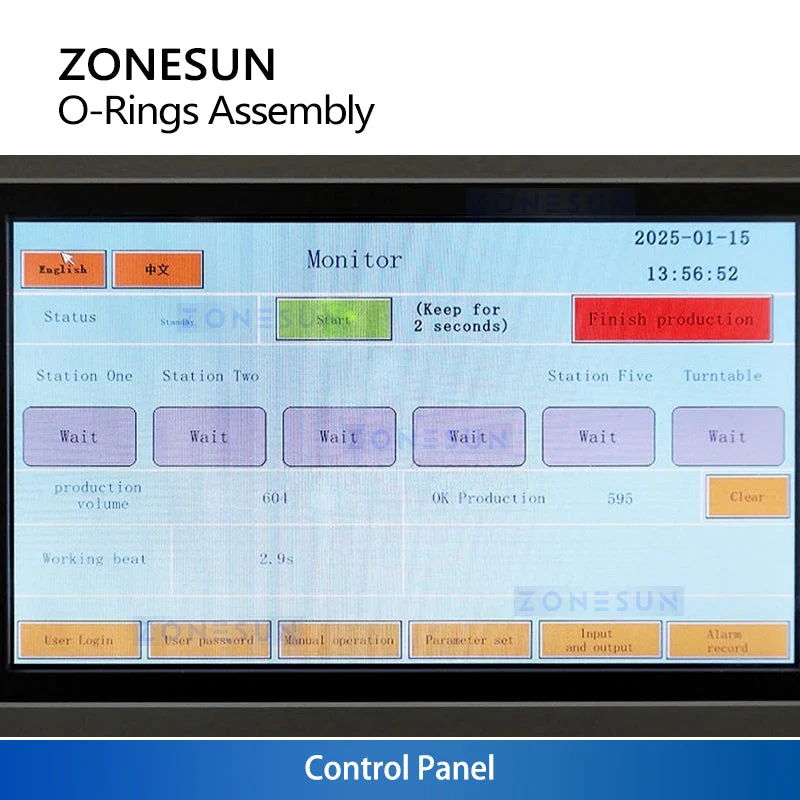

- Control System: PLC + HMI touch screen
