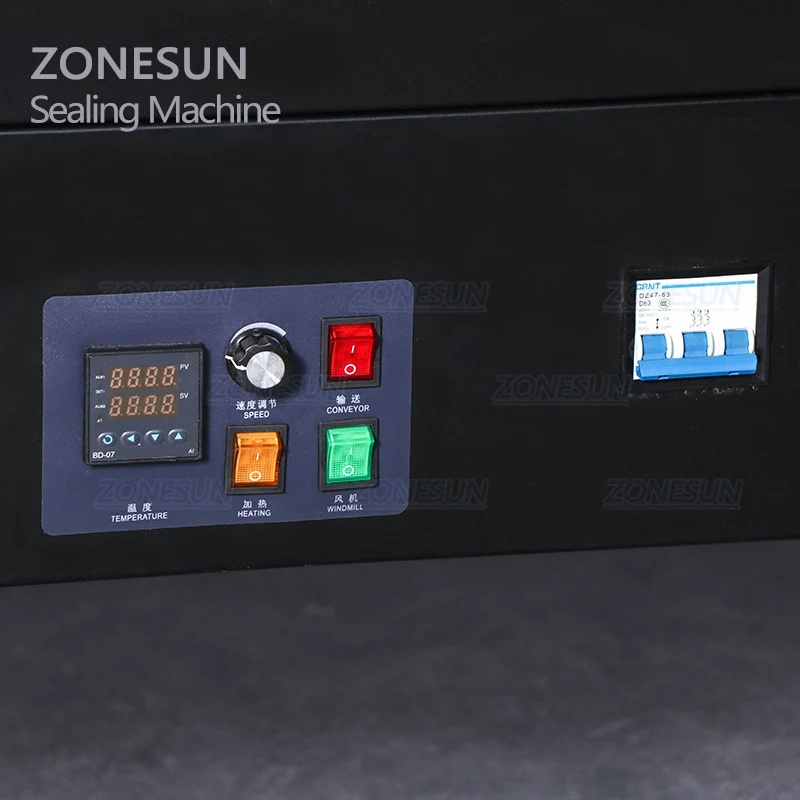

The ZONESUN ZS-BS Series Automatic Heat Shrinking Machines utilize infrared radiation for direct heating of PVC and POF shrink films, delivering flawless packaging without damaging the product. Equipped with electronic variable speed control and a solid-state temperature regulator, these machines offer reliable performance across food, beverage, cosmetics, hardware, and daily chemical industries. Available in multiple oven sizes and power levels, they support up to 10kg transport load and operate at speeds up to 10 m/min. Ideal for shrink wrapping boxes, bottles, and retail goods with consistent finish and efficiency.
Parameter
|
Model |
ZS-BS4525 type |
ZS-BS4535 type |
ZS-BS6535 type |
|
Voltage |
380V 50/60Hz |
||
|
Power |
7kw |
9kw |
12kw |
|
Size of shrink oven |
900*450*250mm |
1200*450*350mm |
1200*650*350mm |
|
Conveying speed |
0-10 m/min |
||
|
Transport load |
10kg |
||
|
Applicable shrink film |
POF PVC |
||
|
Dimensions |
1200*650*830mm |
1600*650*830mm |
1600*850*830mm |
|
Package weight |
About 75kg |
About 75kg |
—— |
Temperature and time control
PVC 0.02-0.06MM 5-10S 110-130(Temperature)
POF 0.03-0.10MM 8-16S 130-170(Temperature)
