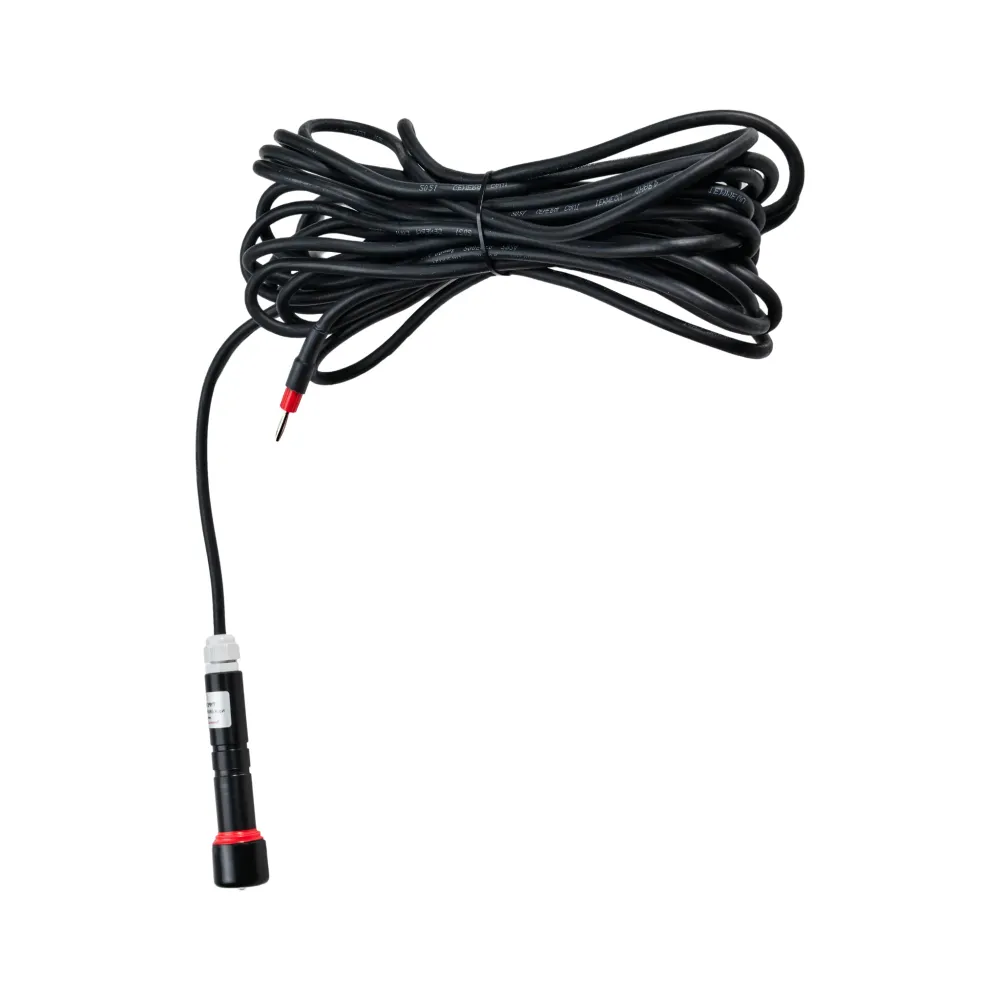

Portabel referenselektrod för portabelt bruk, Ag/AgCl ELEKTROD, WE100-PBW Ag/AgCl 0.5M KCl
- 10M lång kabel
- Sladdvinda ingår för enkel förvaring
- Kabelfärg: Svart
Copper cable(marine grade): 1 x4.0mm H07RNF (BLACK)
- Material: Acetal body with porous ceramic sintered disc and nylon cable gland
- Längd: 125mm (148mm w/ gland); Diameter: Body: 22mm; Cap: 30mm
- Vikt: 80g, utan kabel
SILVER CHLORIDE ELEMENT
- Material: Silver compounds are 99.90% pure
- Dimensioner: Length: 50mm (+/- 2mm); Section: 5mm x 5mm
- Yta: . Geometric: 10cm2 ; Real: 500cm2
Inert electrolyte with 0.5 Molar KCl
PERFORMANCE DATA STABILITY (POTENTIAL DRIFT AT CONSTANT TEMP AND ENVIRONMENT)…………………………….. +/- 1mV (24 Hrs) @ 5μA load ACCURACY (Vs SCE IN 3% NaCl @20o C)………. -5mV +/-5mV TEMP COEFFICIENT…………………………… -0.65V/ o C TEMP RANGE……………………………………… -5 to 70o C INTERNAL RESISTANCE…………………….. Less than 500 Ohms THEORETICAL DESIGN LIFE ………….…… 30 years @ 0.1 μA load
